hpmont HD5L-PLUS Series User Manual

Chapter 4 Electrical Installation Shenzhen Hpmont Technology Co., Ltd.
16 HD5L-PLUS Series User Manual V1.0

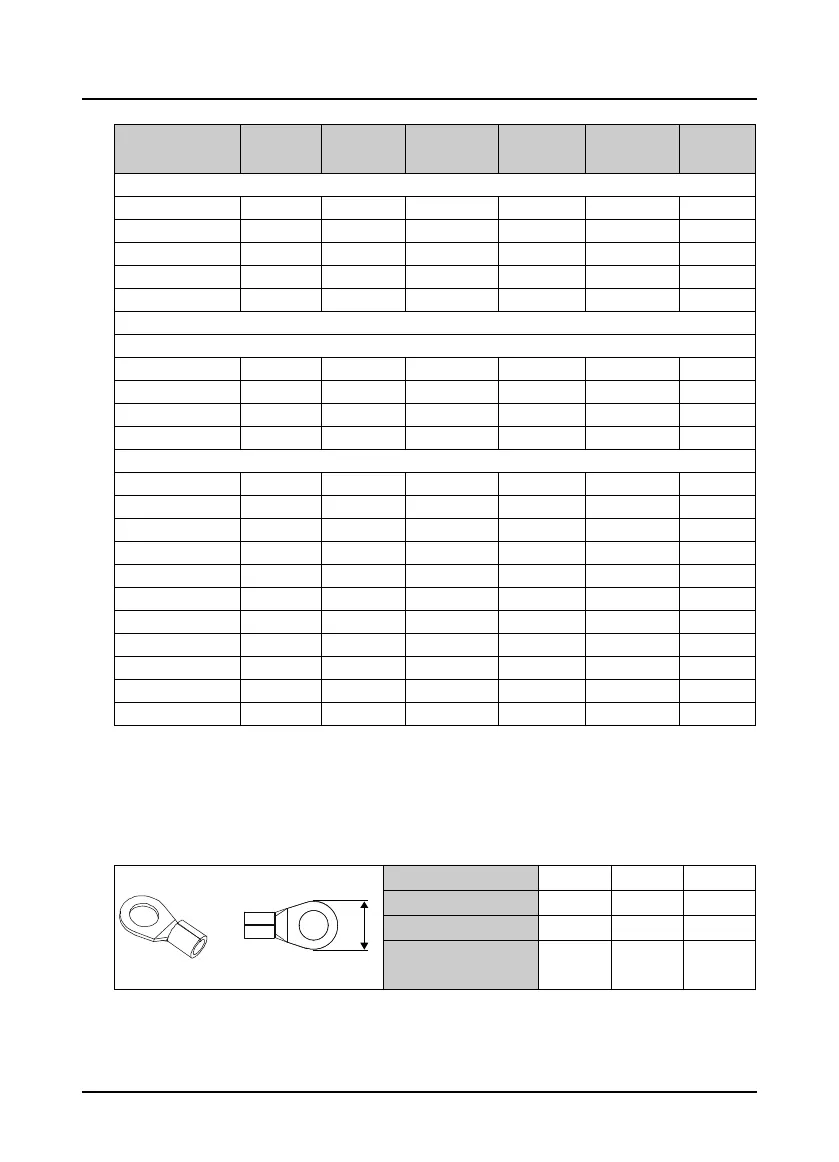

Table 4-2 HD5L-PLUS I/O wiring specification
Model
MCCB
(A)
Contactor
(A)
Power Cable
(mm
2
)
Motor Cable
(mm
2
)
Ground Cable
(mm
2
)
Size
Single phase/Three phase power supply: 200 - 240V, 50/60Hz
HD5-2D2P2-PLUS 32 20 6/2.5
(1)
2.5 6/2.5
(1)
F3
HD5L-2D3P7-PLUS 63 32 10/4
(1)
4 10/4
(1)
F3
HD5L-2D5P5-PLUS 32 20 25/6
(1)
6 16/6
(1)
F3
HD5L-2D7P5-PLUS 100/40
(1)
63 /32
(1)
35/10
(1)
10 16/10
(1)
F3
HD5L-2D011-PLUS 125/63
(1)
100/40
(1)
25/16
(1)
16 16 F4
(1): Value before / is for single phase model, value after / is for three phase model.
Three phase power supply: 200 - 240V, 50/60Hz
HD5L-2T015-PLUS 125 100 25 16 16 F5
HD5L-2T018-PLUS 160 100 35 35 16 F5
HD5L-2T022-PLUS 200 125 35 35 16 F6
HD5L-2T030-PLUS 200 125 50 50 25 F6
Three phase power supply: 380 - 460V, 50/60Hz
HD5L-4T2P2-PLUS 16 10 1.5 1.0 2.5 F3
HD5L-4T3P7-PLUS 25 16 2.5 1.5 2.5 F3
HD5L-4T5P5-PLUS 32 25 2.5 2.5 4 F3
HD5L-4T7P5-PLUS 40 32 4 4 4 F3
HD5L-4T011-PLUS 63 40 6 6 6 F3
HD5L-4T015-PLUS 63 40 6 10 10 F4
HD5L-4T018-PLUS 100 63 10 10 10 F4
HD5L-4T022-PLUS 100 63 16 16 16 F5
HD5L-4T030-PLUS 125 100 25 25 16 F5
HD5L-4T037-PLUS 160 100 35 35 16 F6
HD5L-4T045-PLUS 200 125 35 35 16 F6
4.2.2 Power Terminal Lug
Select the lug of power terminal according to the size of terminal, screw size and Max. outer diameter
of cable lug. Refer to Table 4-3.
Take the round terminal as an example.
Table 4-3 Selection of power terminal lug
Size F3/F4 F5 F6
Screw Size M5 M6 M8
Tightening Torque (N·m) 2.5 - 3.0 4.0 - 5.0 9.0 - 10.0
Ring cable lug Max.
Outer Diameter d (mm)
12 15.5 24
d
