hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 7 Elevator Application Guidance
HD5L-PLUS Series User Manual V1.0 83
7.3 Terminal Analog Run Application
The elevator controller can calculate the motor present running direction (digital) and running speed
(analog) according to the elevator control logic and send them to HD5L-PLUS. HD5L-PLUS controls the
motor to run at the command and speed of the controller.
Example:
The rated speed of an elevator is 1.750m/s, and the terminal analog operate (F00.05 = 2) is used to
form the elevator control system.
The elevator controller controls the brake and running contactor, and outputs direction signal (digital)
and running speed (analog) to HD5L-PLUS.
Control Part Connection

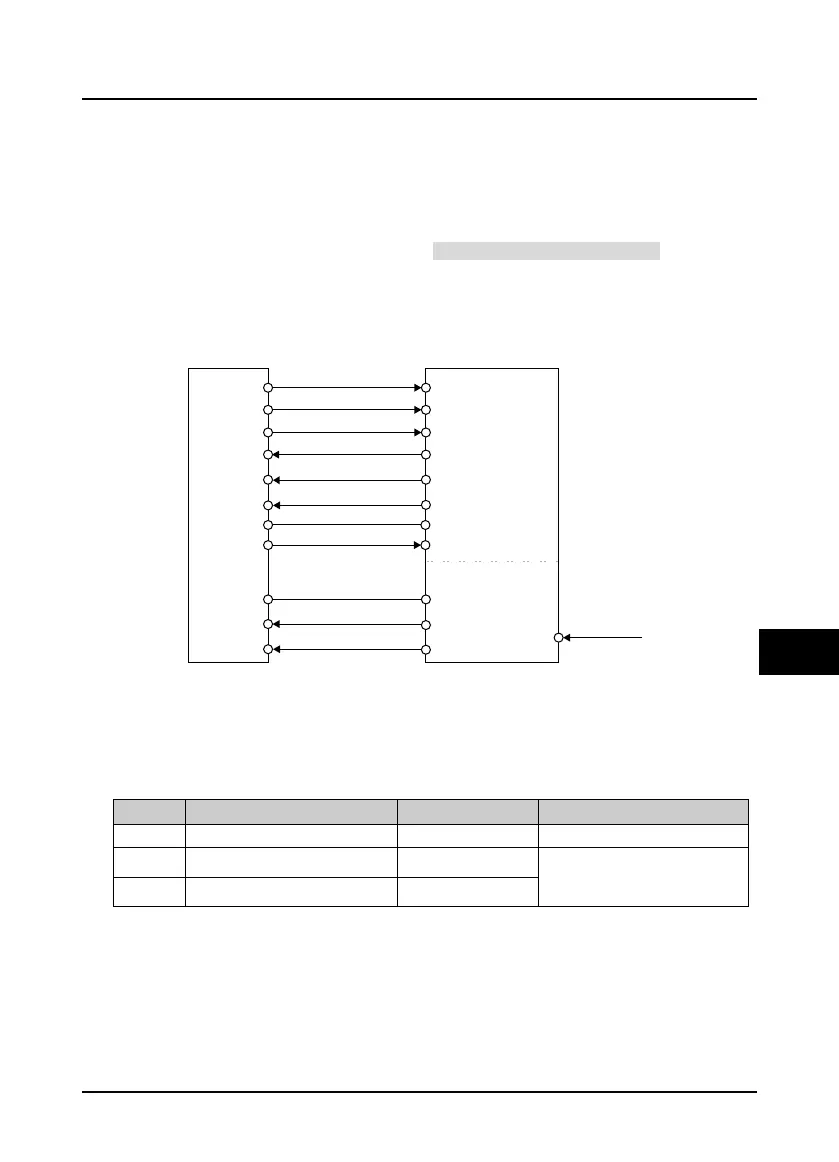

Figure 7-3 Terminal analog running connection
Set Parameter
See Table 7-1 for general parameter settings for terminal operation, and see Table 7-3 for special
parameter settings.
Table 7-3 Terminal analog run parameter
Ref. Code Function Value Remark
F00.05 Operating mode 1 Terminal analog control
F02.02 Retention time of start zero-speed 0.5s
Adjust according the situation of
running contactor and brake at
motor start&stop
F02.06 Retention time of stop zero-speed 0.5s
Control
Board
Elevator
Logic
Control
Board
Controller fault
Controller is running
Controller enabled (EN)
UP
DN
Speed command
DI1
AI
PG feedback
signal
DI2
DI3
COM
Y4（RLY）
DO1
Controller is at
zero-speed running
DO2
PA
COM
OUTA
PB
OUTB
HD5L-PLUS
PG card
7
