hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Chapter 6 Function Introduction
HD5L-PLUS Series User Manual V1.0 51
6.2.3 F02: Start&Stop Parameters
Ref. Code Function Description Setting Range [Default]
F02.00 Start delay time 0.000 - 4.999 [0.000s]
Delay time from running command to controller running.
• When controlled by keypad (F00.05 = 0), F02.00 is invalid.
F02.01 Brake open delay time 0.000 - 4.999 [0.000s]
Defines the time from zero-speed running to output brake-open command.
• Set F02.01 to make the HD5L-PLUS enter running status before the brake is opened to prevent shock
during starting.
F02.02
Retention time of start zero-speed
0.000 - 4.999 [0.500s]
The time from when the brake is opened to when there is speed output, the motor has output torque
during this time.
• Improves comfort when starting.
• When F06.00 = 4 (no weighing auto-compensation is used), the value of F02.02 should exceed 0.5s.
F02.03
Start speed
0.000 - 0.400 [0.000m/s]
Defines the initial speed required for starting the controller.
• The start speed, when properly set, can minimize the start jerk.
F02.04
Retention time of start speed
0.000 - 4.999 [0.000s]
Defines the time for maintaining the running start speed (F02.03) during the starting process of the
controller.
F02.05
Brake close delay time
0.000 - 4.999 [0.200s]
The time from the controller running at zero speed to the output of the brake release command.
F02.06 Retention time of stop zero-speed 0.000 - 4.999 [0.300s]
When stopping, keep the motor at zero speed and output torque.
• Improves comfort when stopping.
F02.07
Contactor close delay time
0.000 - 4.999 [0.000s]
Defines the running contactor delay release time after the run command is revoked.
F02.08 Start ramp time 0.000 - 2.000[0.000s]
Defines the time that elevator takes to accelerate from zero to the rated speed (F00.02).
• Invalid when F02.08 = 0.

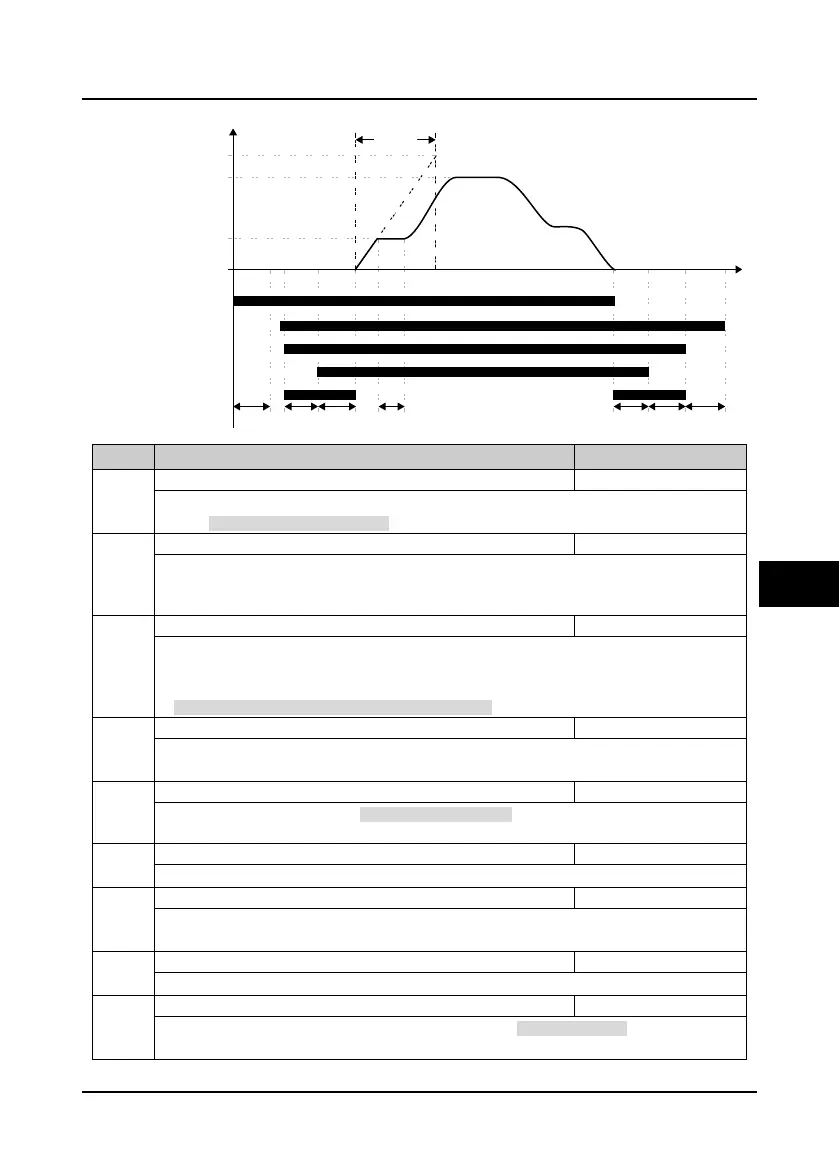

F02.00
F02.01
F02.02
F02.04
F02.03
F00.02
F02.08
0
Ru
n
co
m
m
a
n
d
C
o
nt
ac
t
or
o
u
t
p
u
t
Con
tro
lle
r is i
n r
unni
n
g
Tar
g
e
t s
p
ee
d
Br
ak
e
T
i
m
e
S
p
ee
d
At
ze
r
o-
sp
ee
d r
u
nni
n
g
F02.05
F02.06
F02.07
6
