Shenzhen Hpmont Technology Co., Ltd. Chapter 4 Electrical Installation
HD5L-PLUS Series User Manual V1.0 29
Connection

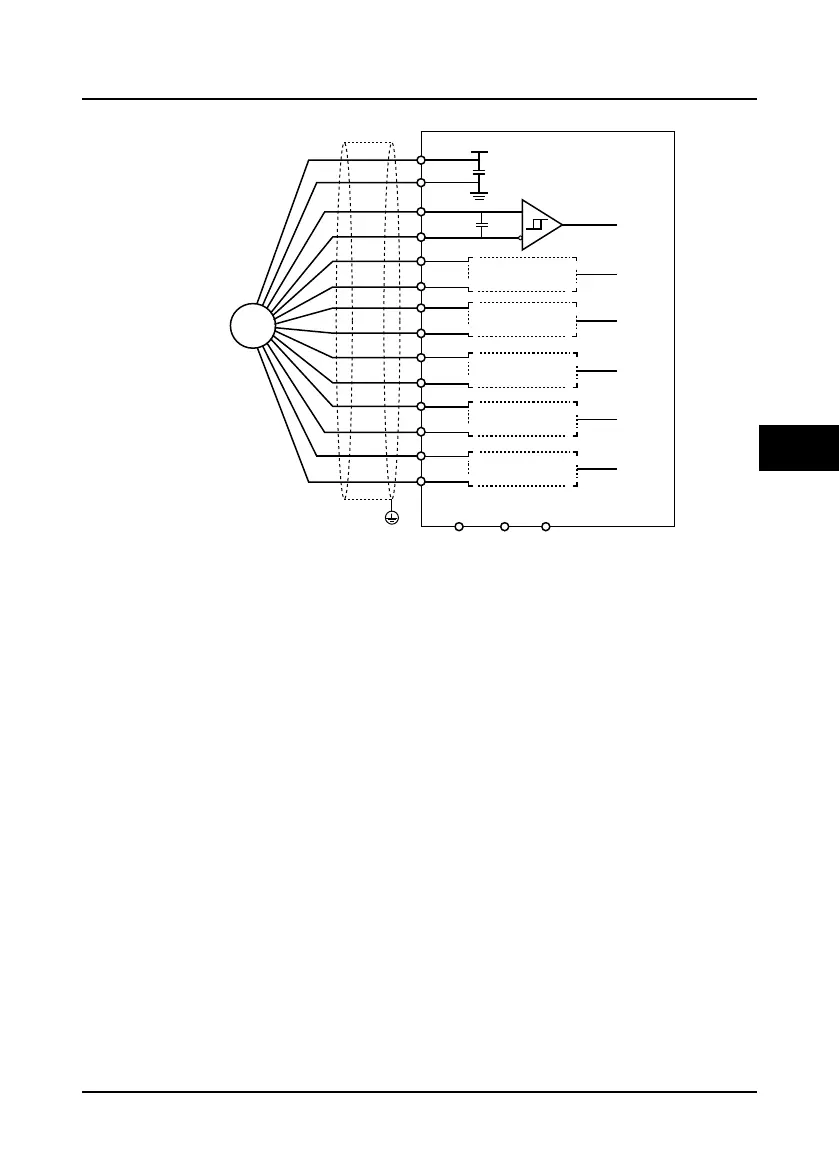

Figure 4-19 Connection of UVW encoder
FD wiring, see 4.5.3
A
GND
UVW encoder
PG
A+
A-
+5V
PGGND
PGVCC
B
B+
B-
Z
Z+
Z-
U
U+
U-
V
V+
V-
W
W+
W-
OUTBOUTA
COM
PE
HD-PG6-UVW-FD
Interface circuit
the sameas A
Interface circuit
the sameas A
Interface circuit
the sameas A
Interface circuit
the sameas A
Interface circuit
the sameas A
4
