Do System Tests to Identify Defective Components

116 810430 Troubleshooting Guide Powermax65/85/105 SYNC

3. Measure the voltage between pin 1 and pin 4 at J4 or J6 on the power PCB. Refer to Figure 31.

Is the voltage approximately 5 VDC?

 If yes, continue with the next step.

 If no, replace the power PCB.

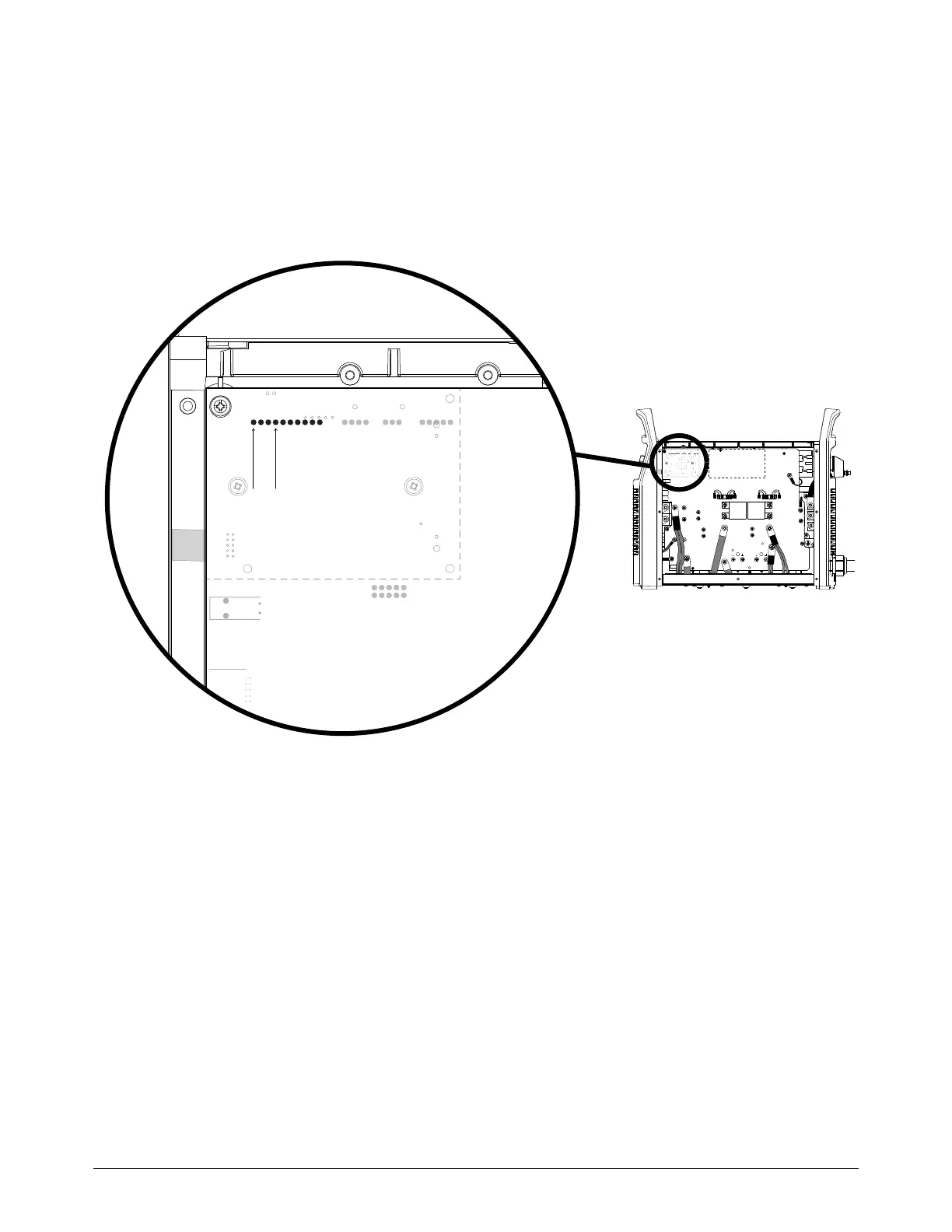

Figure 31 – Solenoid valve pins on the power PCB

J4 / J6

RED

J32

RED

J21

ORG

J20

J12

WORK

LEAD

BLK

J13

J16J17J18J19

J26

J29

TP12

J28

TP10

TP11

J4 J2 J1J3
