Harness Connection View

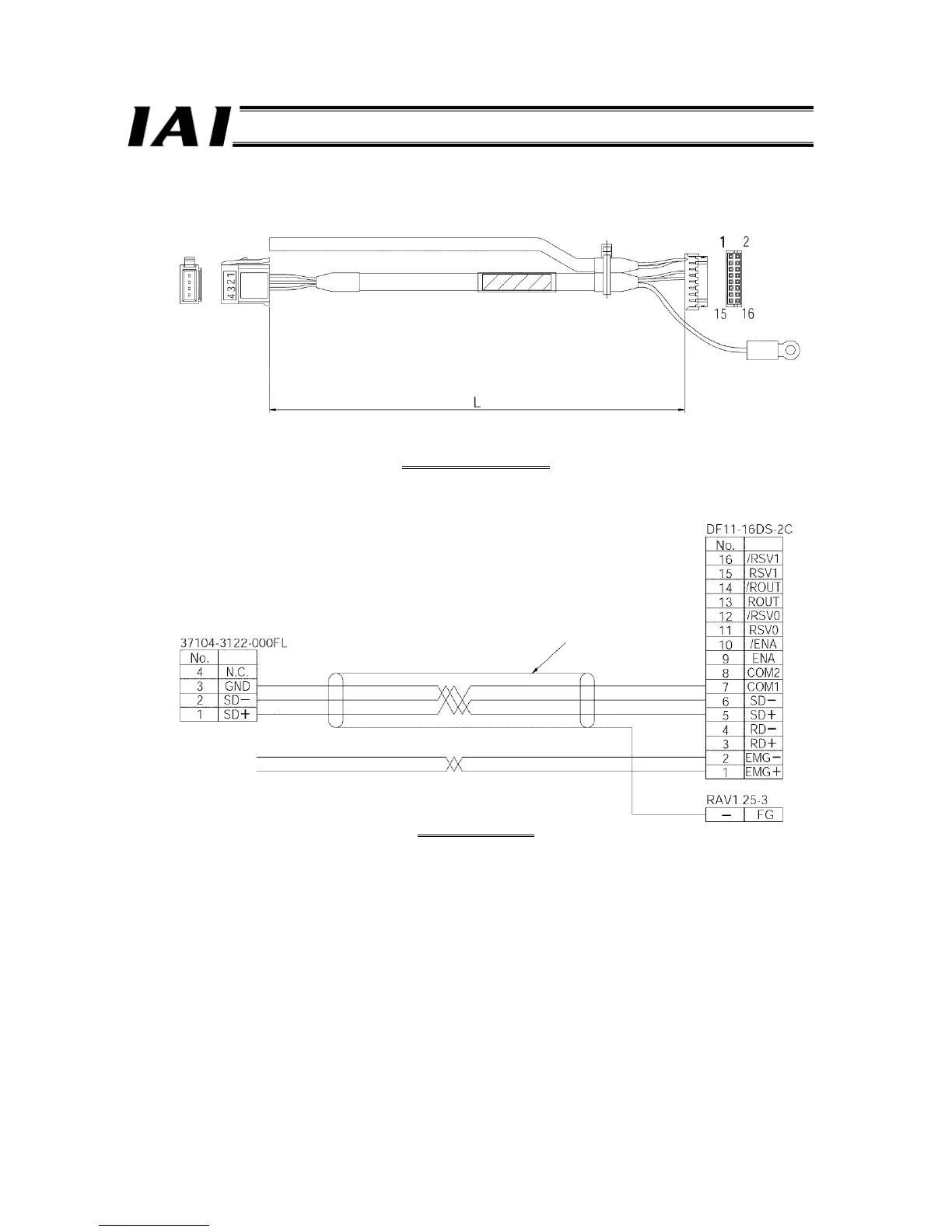

Connection Diagram
 indicates the cable length (L).
Example) 010 = 1 m
Fig. 5 Controller connection cable (CB-REXT-CTL)
white
gray
orange
gray
orange
white
gray
orange
gray
orange
Signal name
Signal name
Braided shielded wire
Ground
