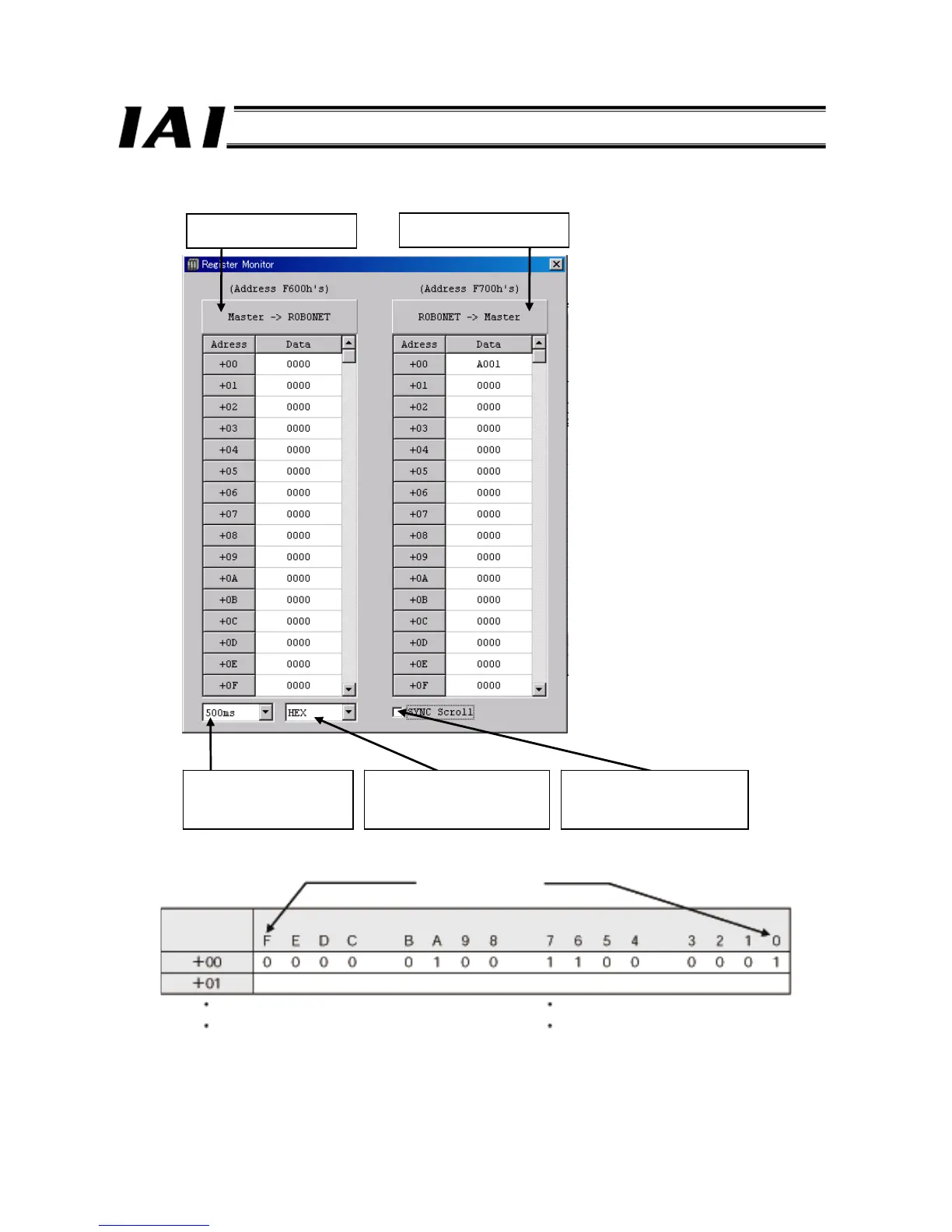

[2]-1 Choosing I/O data will lead to display the resister monitor window. (Initially it is displayed in hexadecimal numbers.
The example below is a window of binary numbers.)
Data consists of bit F (15) on the left end, and bit 0 on the right end.
Data consists of bit F (15) on the left end, and bit 0 on the right end.
Data
Adress
Received data from master
Sent data to master
Data read cycle can be
changed.
(100 to 500 ms)
Display can be switched
between binary and
hexadecimal number displays.
The contents of sent data and
received data scroll together if
this box is checked.
