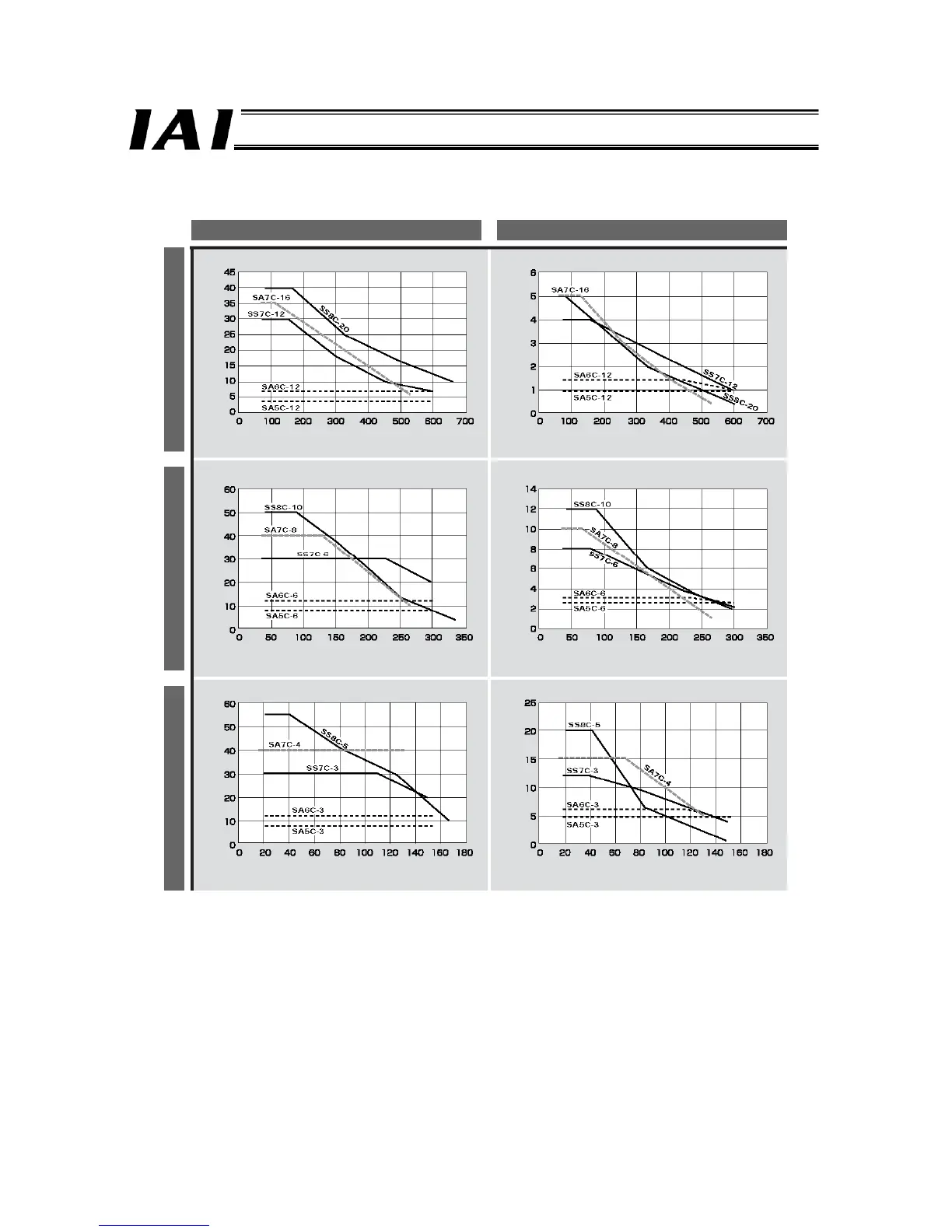

z Correlation Diagrams of Speed and Load Capacity – Slider Type (Motor Straight Type)
Horizontal installation Vertical installation
High-speed type Medium-speed type Low-speed type
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
Load capacity (kg)
Speed (mm/sec)
(Note) In the above graphs, the number following the type name indicates the lead.
