129
INTELLIGENT ACTUATOR
Part 3 Controller Data Structure
1.6 T
ags
The term “tag” means “hea
ding.”

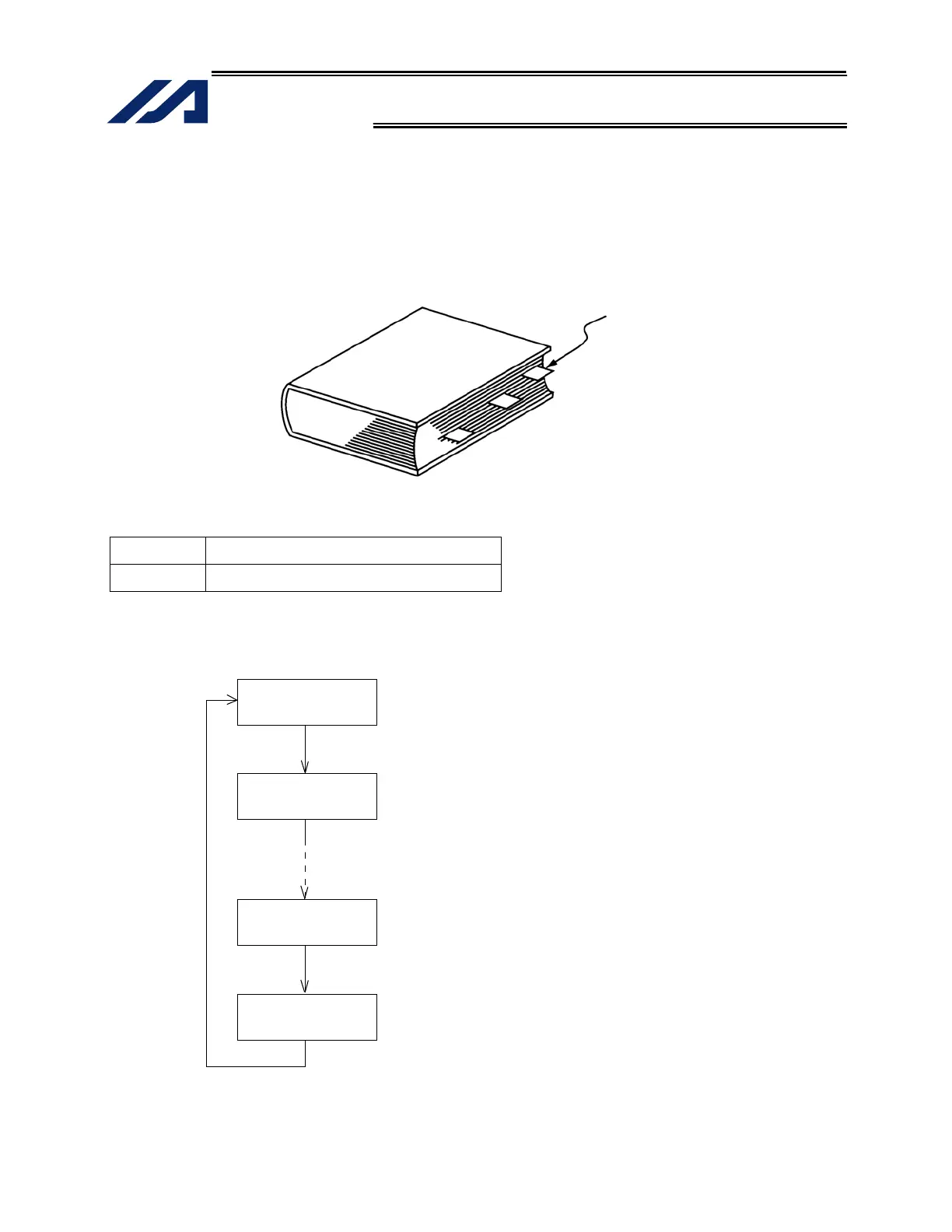

Tags are used in the same way you attach labels to
the pages in a book you want to referen
ce frequently.
A tag is a destination specified in a jump comm
and “GOTO.”
Command Operand
1
TAG
Tag number (Integer between 1 and 99)
They are used only in each program.
Tag
TAG 1
GOTO 1
