351
INTELLIGENT ACTUATOR
Appendix
5.

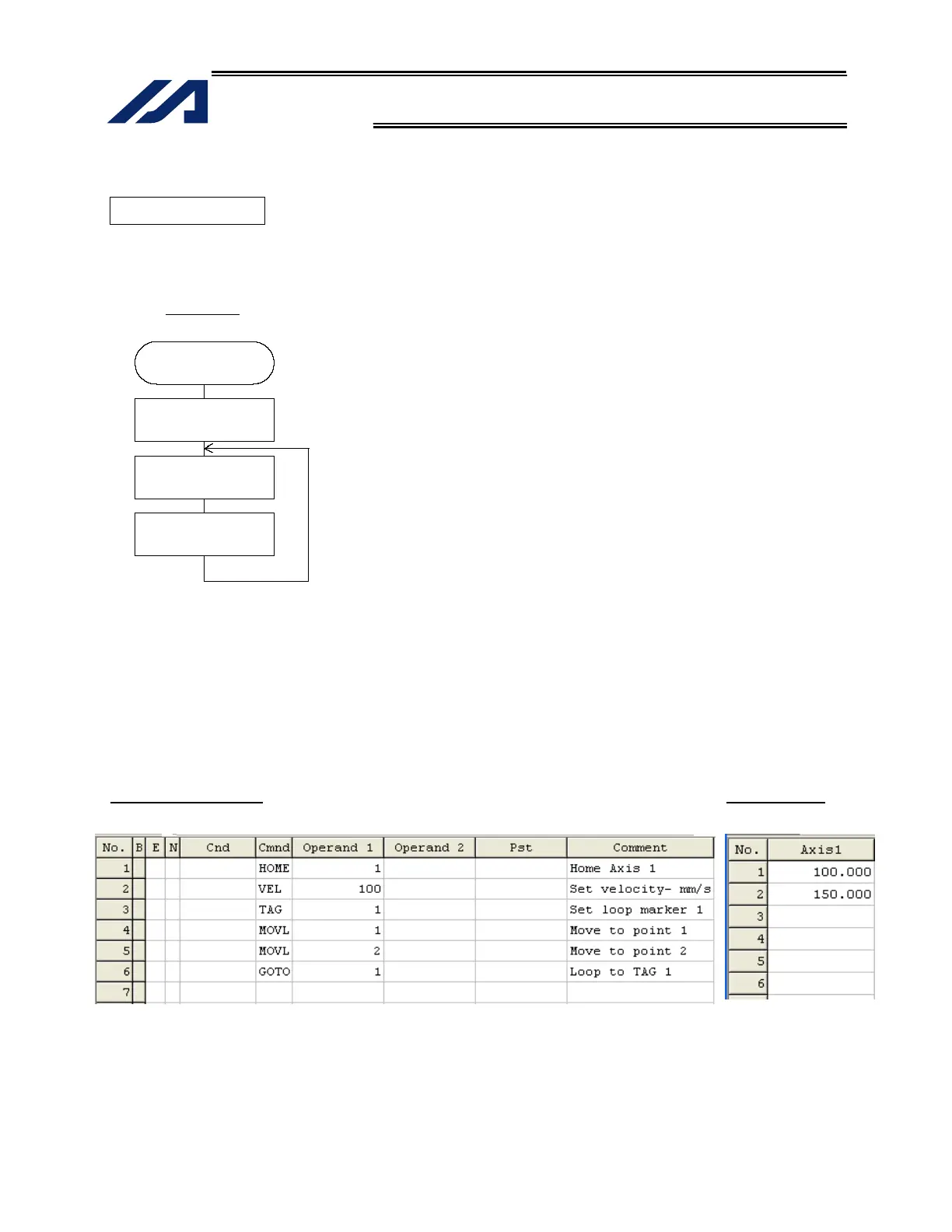

Moving Bac
k and Forth between T
wo Points
Description
Moves back and forth between two poi
nts.
Flowchart
ï‚·
The actuator moves back and forth bet
ween P1 and P2 indefinitely.
ï‚·
Use of only 1 axis is assumed.
ï‚·
Enter TAG in the first of the steps
to be repeated, and enter GOTO in the
last of the steps to be repeated.
Application program
Position
data
Start
Homing
Move to P1
Move to P2
380
