Part 1 Installation
4. External Dimensions
4.1 P/Q Type (Three-phase Standard Specification, Single-phase Global Specification, Single-
phase Standard Specification) 4-axis Controller
External views of enclosures for various 4-axis controllers are shown below (the external enclosure
dimensions are the same for 1-axis to 4-axis controllers).

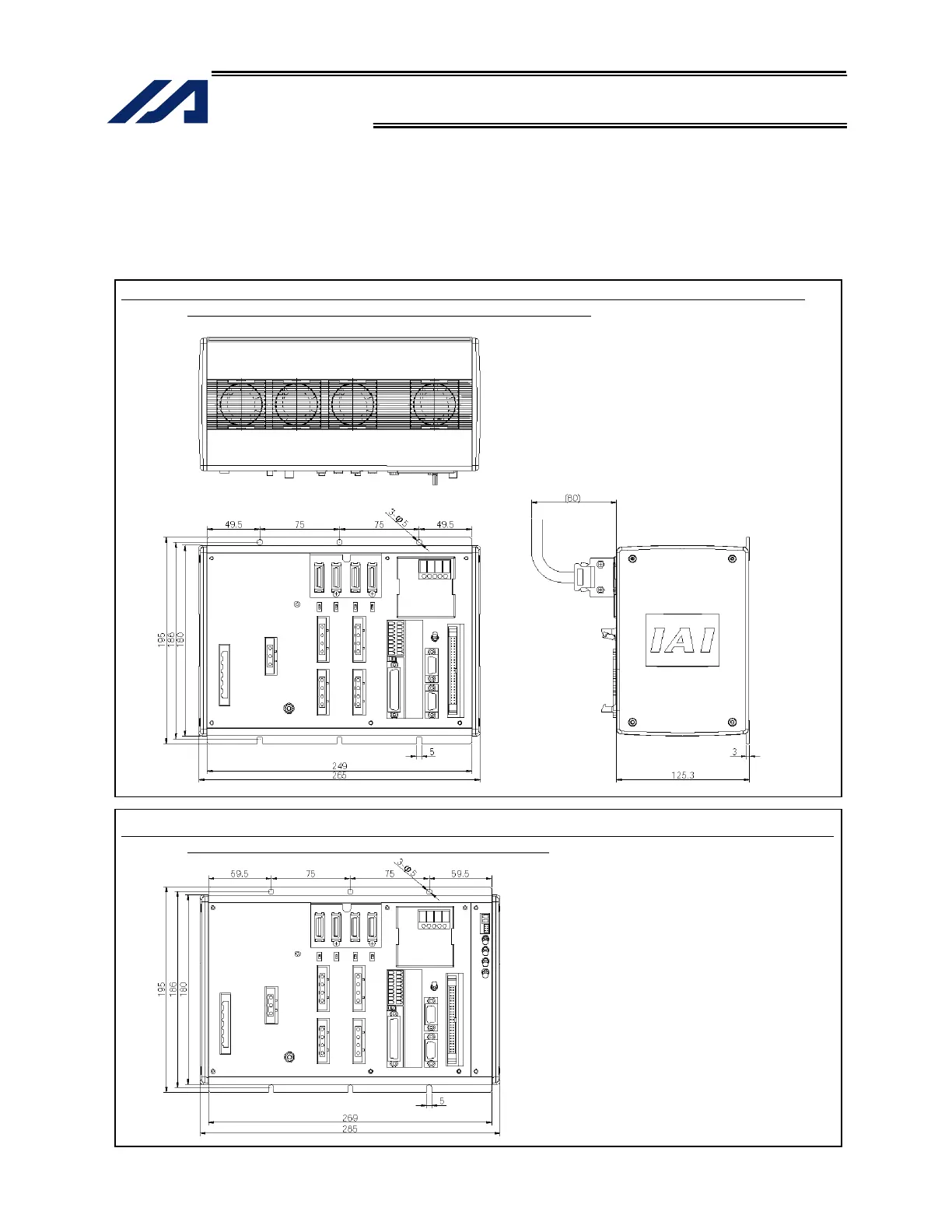

Fig. 4-1 P/Q Type 4-axis Controller (Incremental Specification) (Three-phase Standard Specification, Single-
phase Global Specification, Single-phase Standard Specification)
Fig. 4-2 P/Q Type 4-axis Controller with Absolute Brake Unit (Three-phase Standard Specification, Single-phase
Global Specification, Single-phase Standard Specification)
