INTELLIGENT ACTUATOR
Part 1 Installation
3.6 Input/Output
Circuits
3.6.1 Input
Input specifications
Item Specification
(Common
to
PNP/NPN specifications)
External power-supply voltage
DC24V

10%
Input current
7 mA max. per point
Leak current
1 mA max. per point

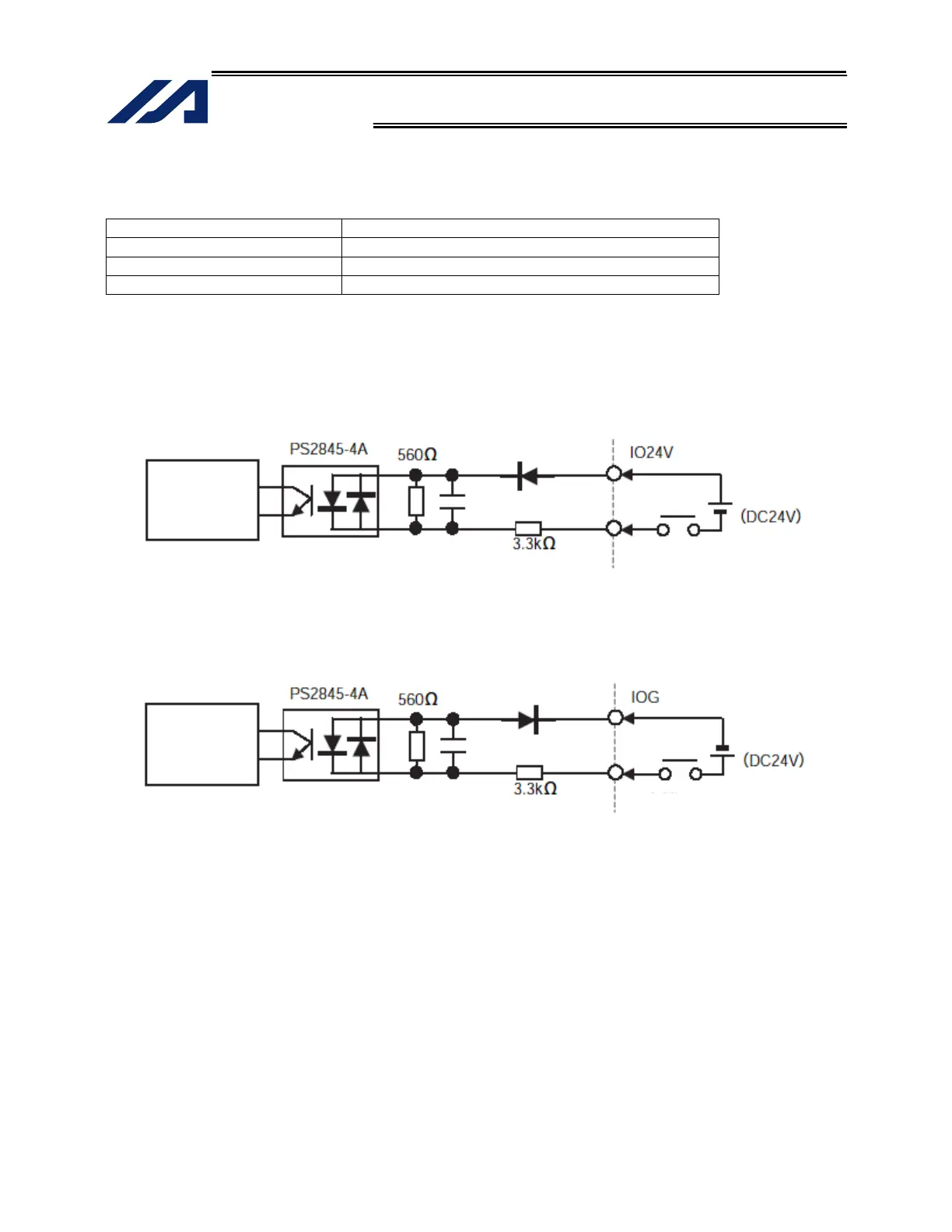

Input circuit
ï‚·
NPN specification
ï‚·
PNP specification
Internal circuit
Internal circuit
External power supply
External power supply
Input terminal
Input terminal
110
112
