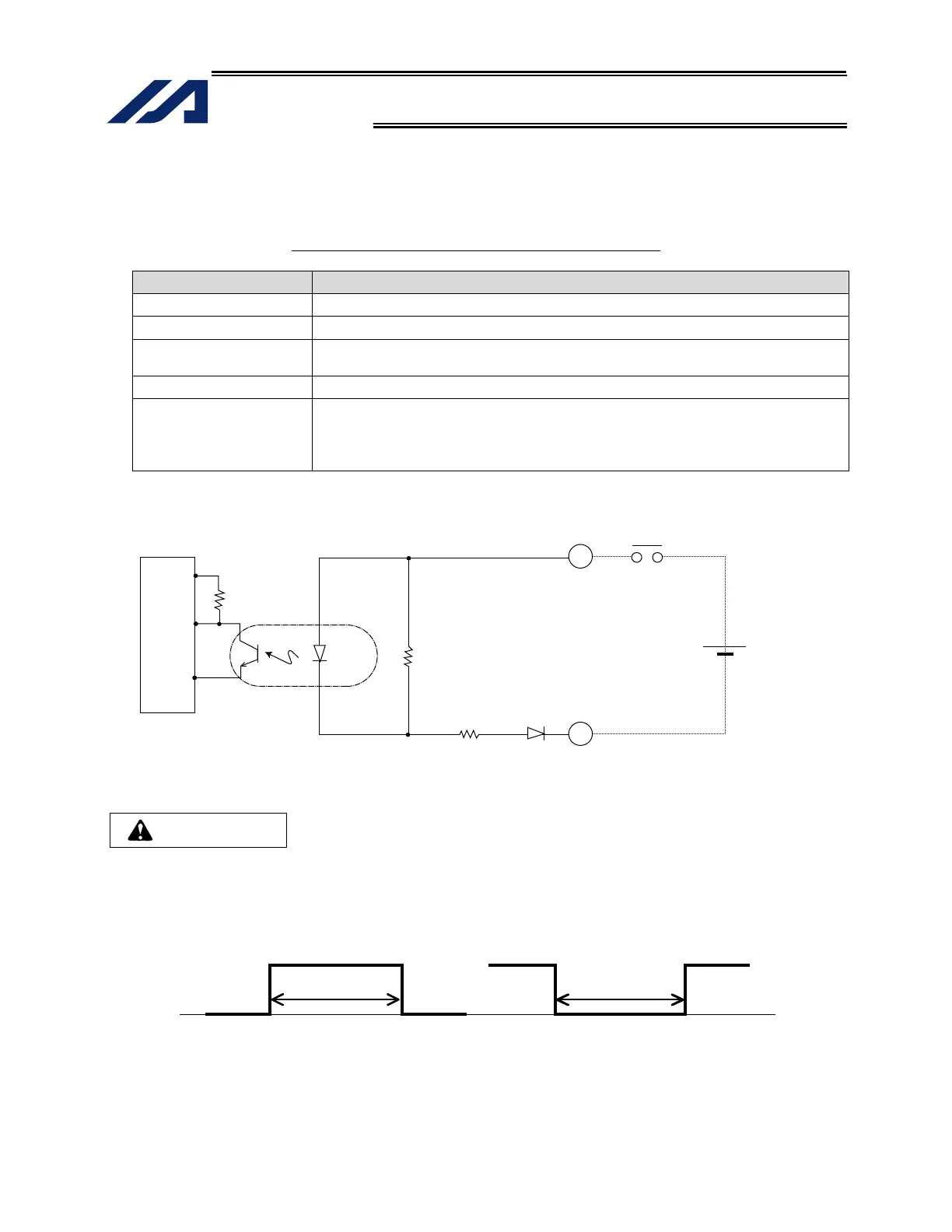

2.2. PNP Specification
(1) Input part
External Input Specifications (PNP Specification)
Item Specification
Input voltage
24 VDC 10%
Input current 7 mA per circuit
ON/OFF voltage
ON voltage --- 8 VDC max.
OFF voltage --- 19 VDC min.
Insulation method Photocoupler insulation
External devices
[1] No-voltage contact (minimum load of approx. 5 VDC/1 mA)
[2] Photoelectric/proximity sensor (PNP type)
[3] Sequencer transistor output (open-collector type)
[4] Sequencer contact output (minimum load of approx. 5 VDC/1 mA)
[Input circuit]
* N: I/O interface pin No. 50
Caution
If a non-contact circuit is connected externally, malfunction may result from leakage current. Use
a circuit in which leakage current in a switch-off state does not exceed 1 mA.
X-SEL controller’s input signal
At the default settings, the system recognizes the ON/OFF durations of input signals if they
are approx. 4 msec or longer. The ON/OFF duration settings can also be changed using I/O
parameter No. 20 (input filtering frequency).
Internal circuit
Input terminal
External power supply
24 VDC 10%
N*
560
3.3 K
ON duration
OFF duration
+
-
