Part 1 Installation

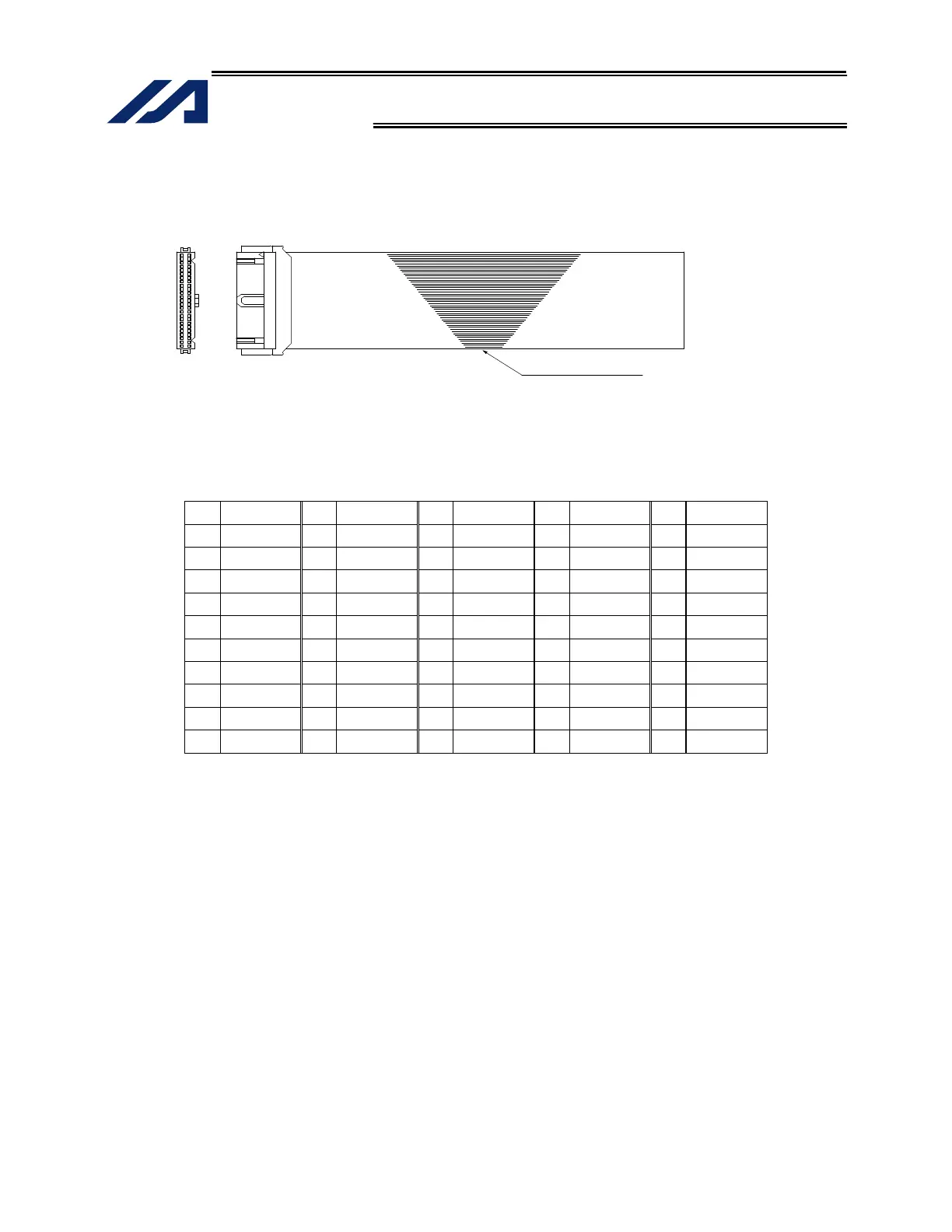

2.3 I/O Flat Cable
Flat cable: KFX-50 (S) (Color) (Kaneko Cord)
No. Color No. Color No. Color No. Color No. Color
1 Brown-1 11 Brown-2 21 Brown-3 31 Brown-4 41 Brown-5
2 Red-1 12 Red-2 22 Red-3 32 Red-4 42 Red-5
3 Orange-1 13 Orange-2 23 Orange-3 33 Orange-4 43 Orange-5
4 Yellow-1 14 Yellow-2 24 Yellow-3 34 Yellow-4 44 Yellow-5
5 Green-1 15 Green-2 25 Green-3 35 Green-4 45 Green-5
6 Blue-1 16 Blue-2 26 Blue-3 36 Blue-4 46 Blue-5
7 Purple-1 17 Purple-2 27 Purple-3 37 Purple-4 47 Purple-5
8 Gray-1 18 Gray-2 28 Gray-3 38 Gray-4 48 Gray-5
9 White-1 19 White-2 29 White-3 39 White-4 49 White-5
10 Black-1 20 Black-2 30 Black-3 40 Black-4 50 Black-5
Connector not attached
Socket (with strain relief): XG4M-5030-T (Omron)
Flat cable (50 cores)
2 1
50 49
