30
INTELLIGENT ACTUATOR
Part 1 Installation
2.3 Current Monitor and Variable Monitor
Other parameter Nos. 49 and 50 can be set up to monitor currents or variables on the panel window (main
application version 0.09 or later).
(1) Current monitor
Currents of up to four axes having continuous axis numbers can be monitored.
Parameter settings
Other parameter No. 49 = 1
Other parameter No. 50 = Smallest axis number among the axes to be monitored
Example) If other parameter No. 49 is set to “1” and other parameter No. 50 to “3” for a 6-axis controller,
the far-right segment digit will show the current for axis 3.

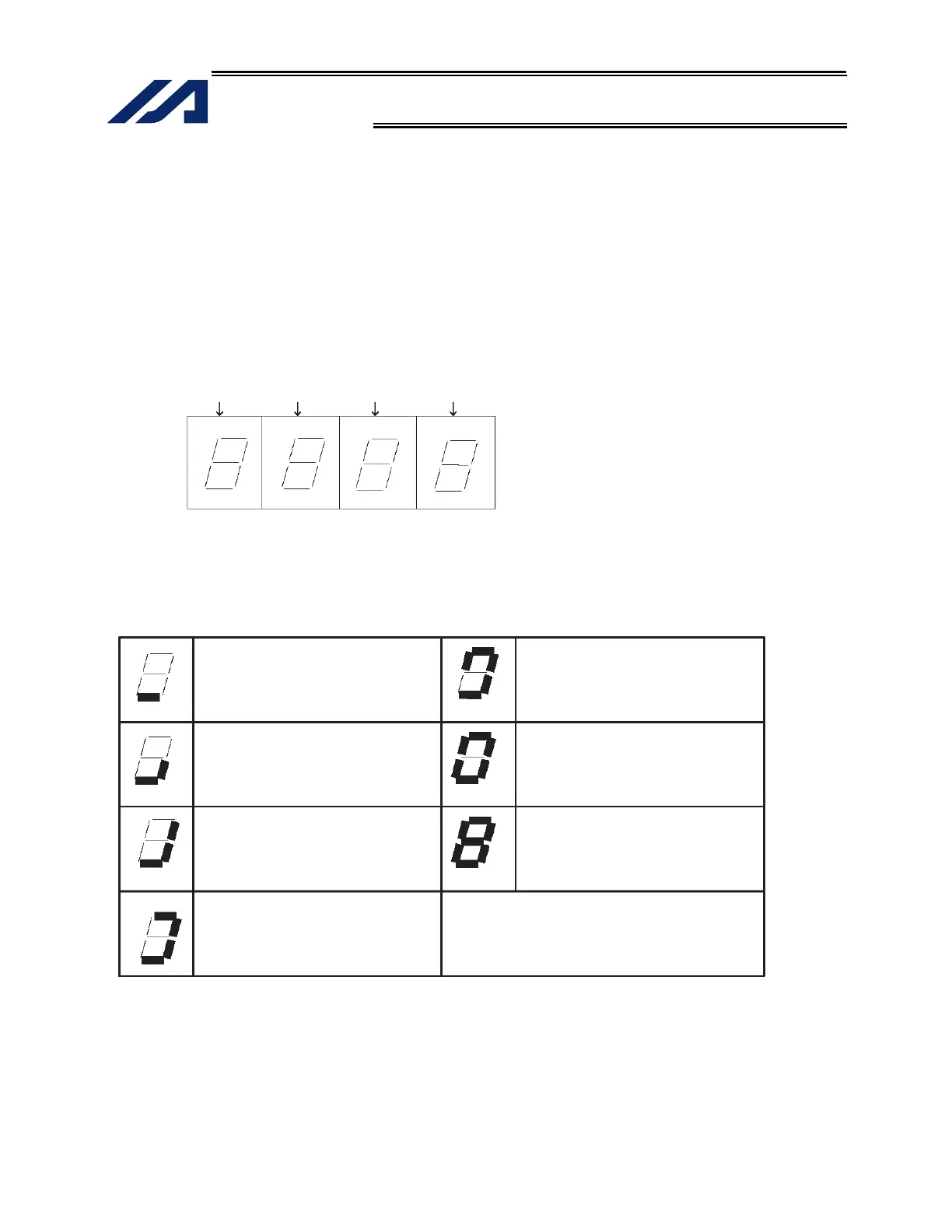

Axis 6 Axis 5 Axis 4 Axis 3
When data is written to the flash ROM or a software reset (restart) is executed after the
parameter values have been input, the panel window will show the motor current to rating ratio
(%) by a segment pattern, instead of “ready status” or “program run number.”
The segment display patterns and corresponding motor current to rating ratios (%) are shown
below.
Thick lines indicate illuminated segments.
0 < Motor current to rating ratio (%) 25
25 < Motor current to rating ratio (%)
50
50 < Motor current to rating ratio (%) 75
75 < Motor current to rating ratio (%)
100
100 < Motor current to rating ratio (%) 150
150 < Motor current to rating ratio (%) 200
200 < Motor current to rating ratio (%)
