IAI X-SEL User Manual

82
INTELLIGENT ACTUATOR
Part 1 Installation
3.6.2 Output
Output specifications
Item Specification
Output element Transistor array
NPN specification: TD62084AF by Toshiba Corporation
PNP specification: TD62784AF by Toshiba Corporation
External power-supply voltage
DC24  10%
Maximum load current 50 mA max. per point
(400 mA max. per 24 points): *1
Leak current 0.1 mA max. per point
*1: 400 mA represents the total output current for each group of 24 points.

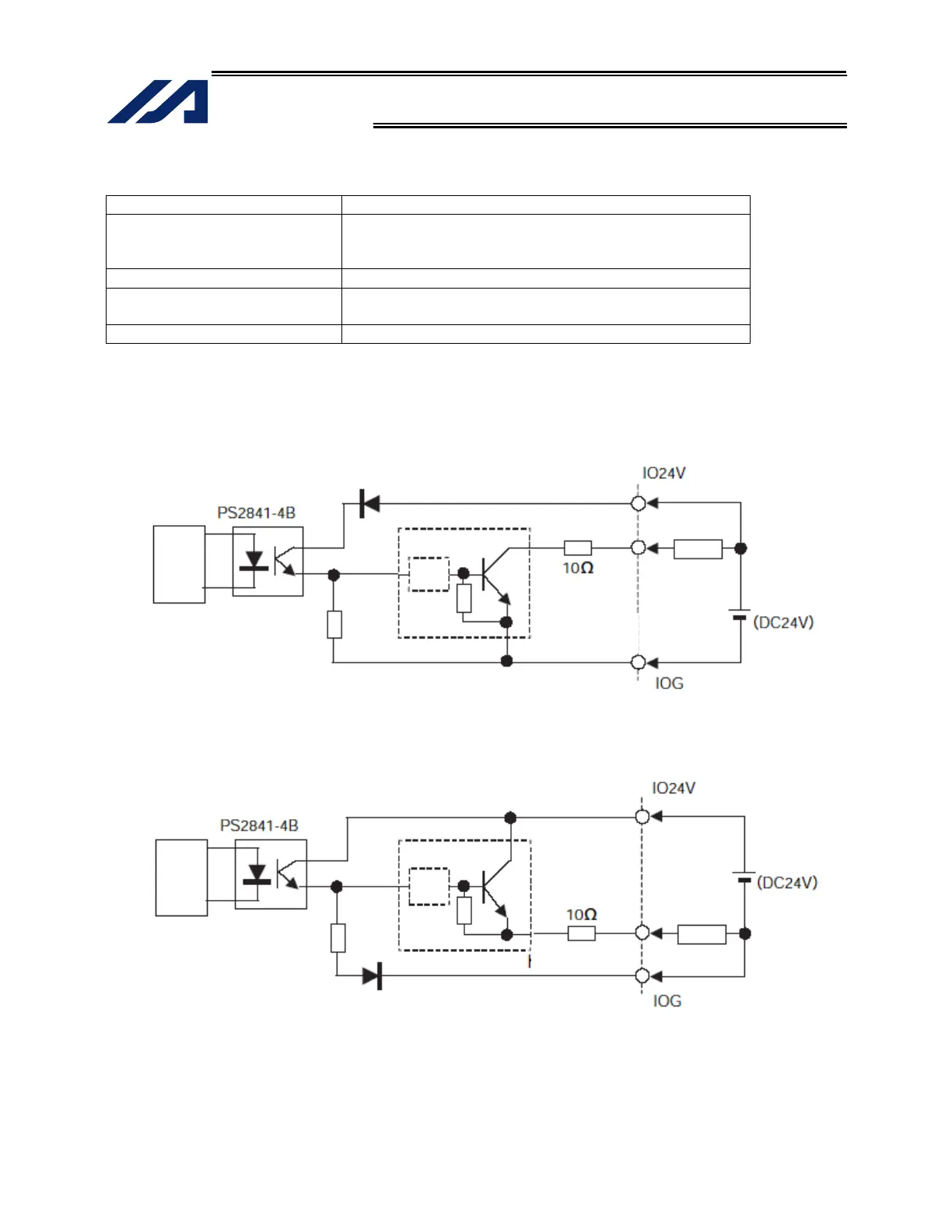

 NPN specification
 PNP specification
Internal
circuit
Transistor
array
Load
Output
terminal
External power supply
Internal
circuit
Transistor array
Load
Output
terminal
External power supply
