222 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

6. Enter an IP address for your iSCSI network. Use a dedicated network for iSCSI traffic

(Figure 5-24).

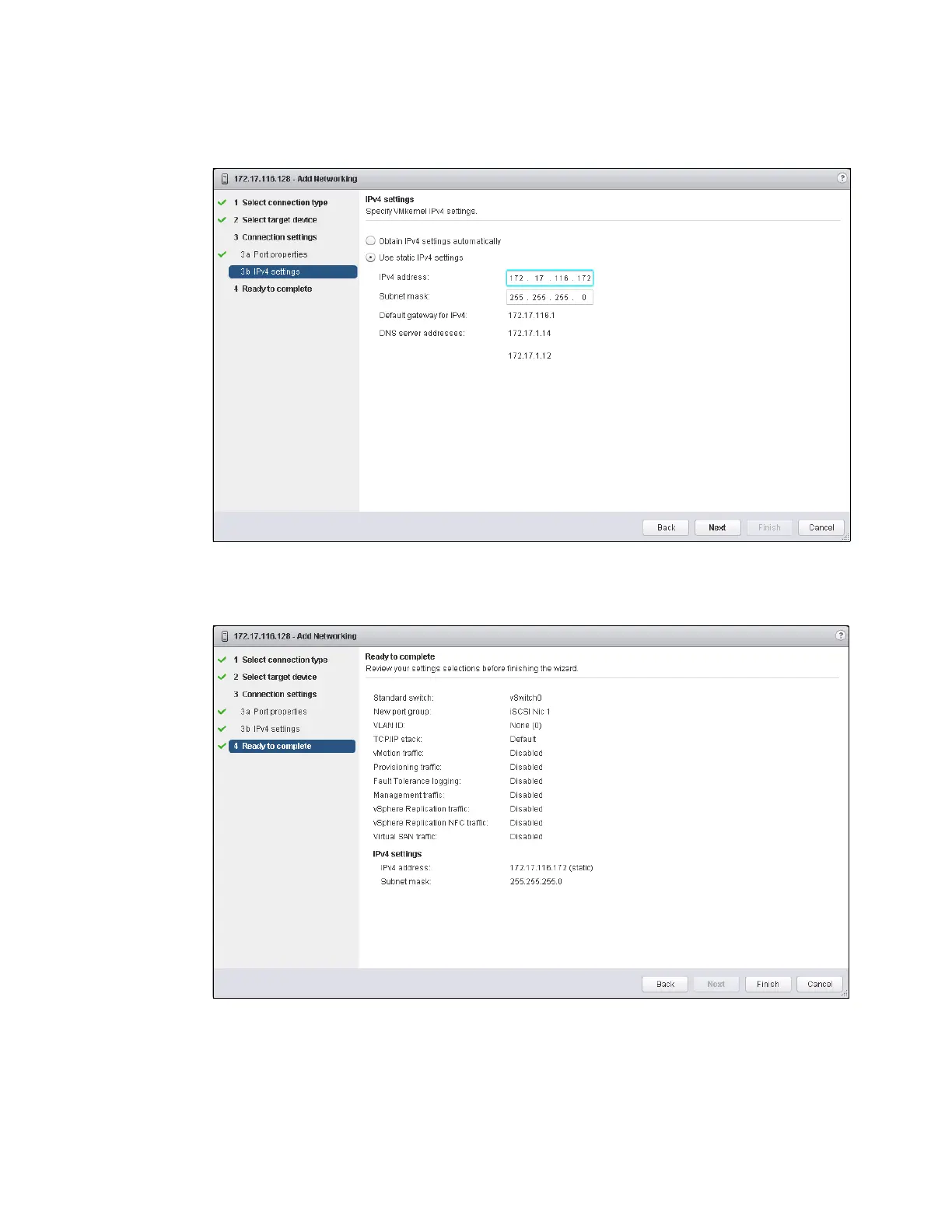

Figure 5-24 VMware: Enter an iSCSI network IP

7. Click Next, as shown in Figure 5-25.

Figure 5-25 VMware: Ready to complete

8. Click Finish to complete the setup.
