136 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

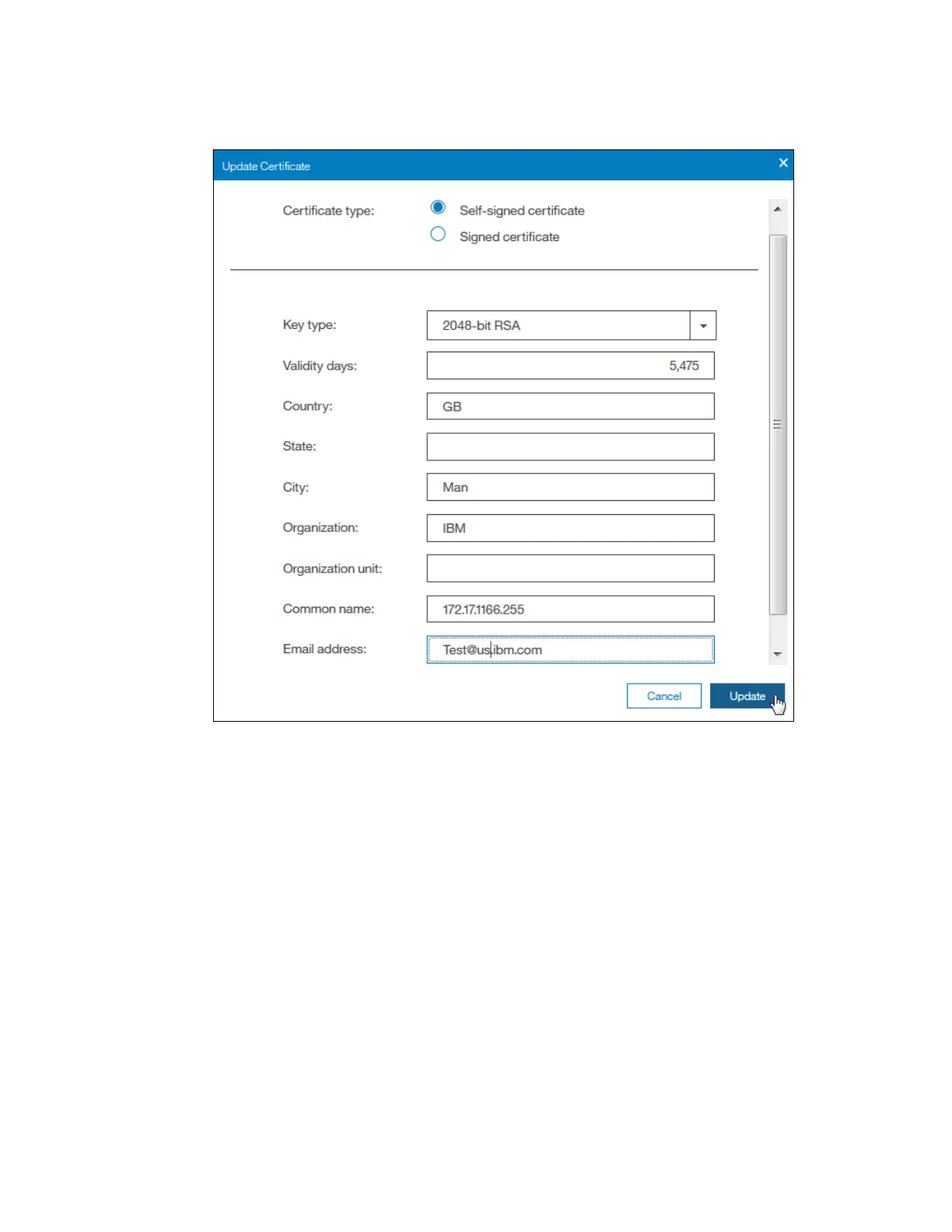

The Update Certificate panel opens, as shown in Figure 3-91.

Figure 3-91 Update Certificate panel

3.9.4 System

The System menu provides the following options:

򐂰 Set the system date and time

򐂰 Manage licenses

򐂰 Upgrade System

򐂰 Virtual Volumes (VVols)

򐂰 IP Quorum

򐂰 I/O Groups

򐂰 DNS
