Chapter 8. Advanced host and volume administration 409
8.3.3 Unmapping volumes from all hosts
To remove all host mappings from a volume, complete the following steps:
1. Select Unmap All Hosts from the Actions menu. This action removes all host mappings,
which means that no hosts can access this volume.
2. Confirm the number of mappings to remove, and click Unmap, as shown in Figure 8-45.

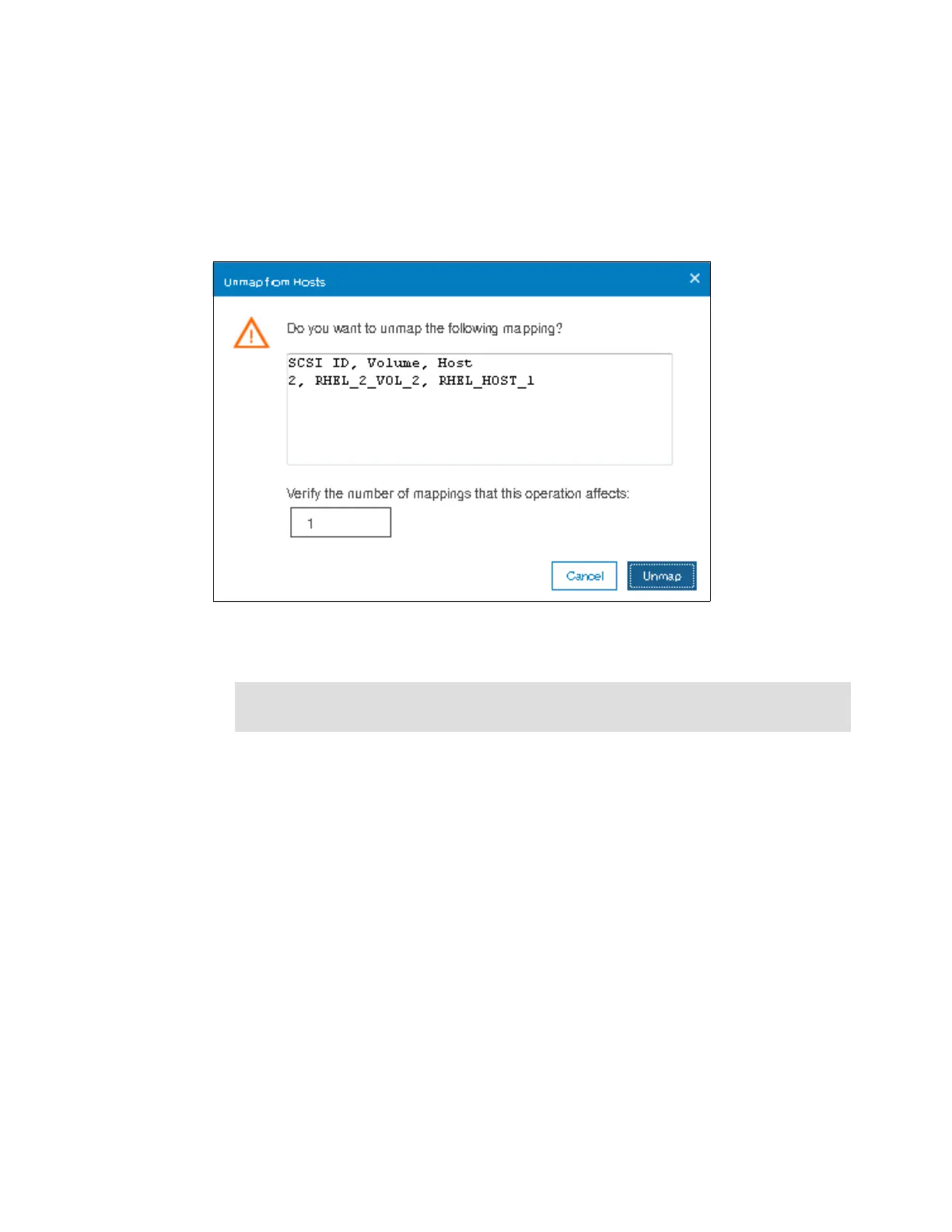

Figure 8-45 Unmapping from host or hosts
3. After the task completes, click Close to return to the Volumes panel.
Important: Ensure that the required procedures are run on the host OS before you run
the unmapping procedure.

Table of Contents

Other manuals for IBM Storwize V5030

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM Storwize V5030 and is the answer not in the manual?

IBM Storwize V5030 Specifications

General IconGeneral
ModelIBM Storwize V5030
CategoryStorage
Controller Enclosures1 or 2
Maximum Drives240
RAID Levels0, 1, 5, 6, 10
VirtualizationYes
Data CompressionYes
Maximum Hosts512
Form Factor2U
Drive TypesSAS, NL-SAS, SSD
Host Interface8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores8 per controller
