390 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

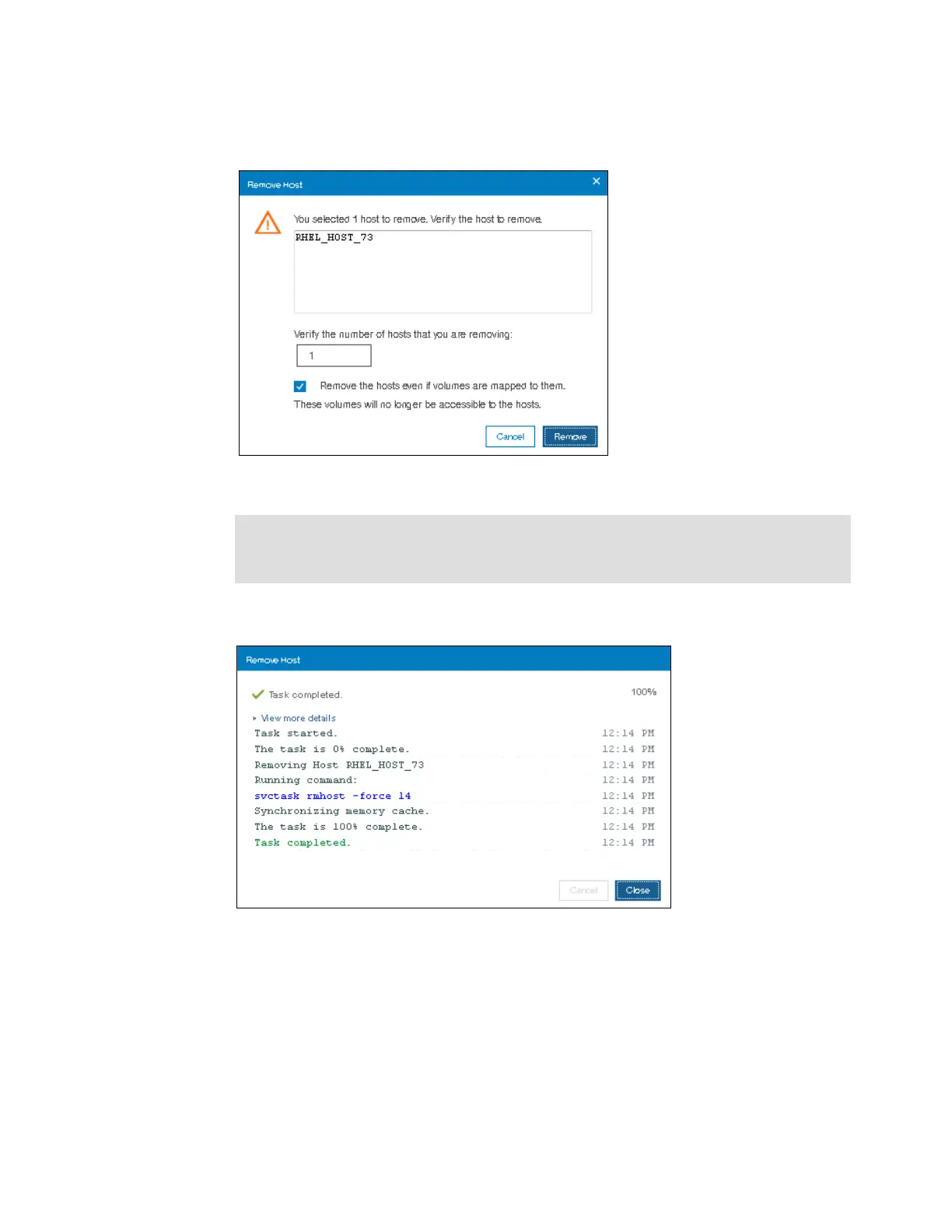

3. Verify the number of hosts you are removing, along with confirmation to remove the host
even if the host has mapped volumes, as shown in Figure 8-23.
Figure 8-23 Removing a host
4. A task completion window opens, as shown in Figure 8-24.
Figure 8-24 Host removal task completion
5. Click Close.
8.1.5 Host properties
This section describes the host properties, which provide the following information:
򐂰 Overview
򐂰 Mapped volumes
򐂰 Port definitions
Note: If a host has volumes mapped, then to remove the host, you will have to check
the box for Remove the hosts even if volumes are mapped to them. These volumes
will no longer be accessible to the hosts to force the action.
