344 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
6.10.1 Define throttle on a volume
To set a throttle on a volume, follow the steps as listed.

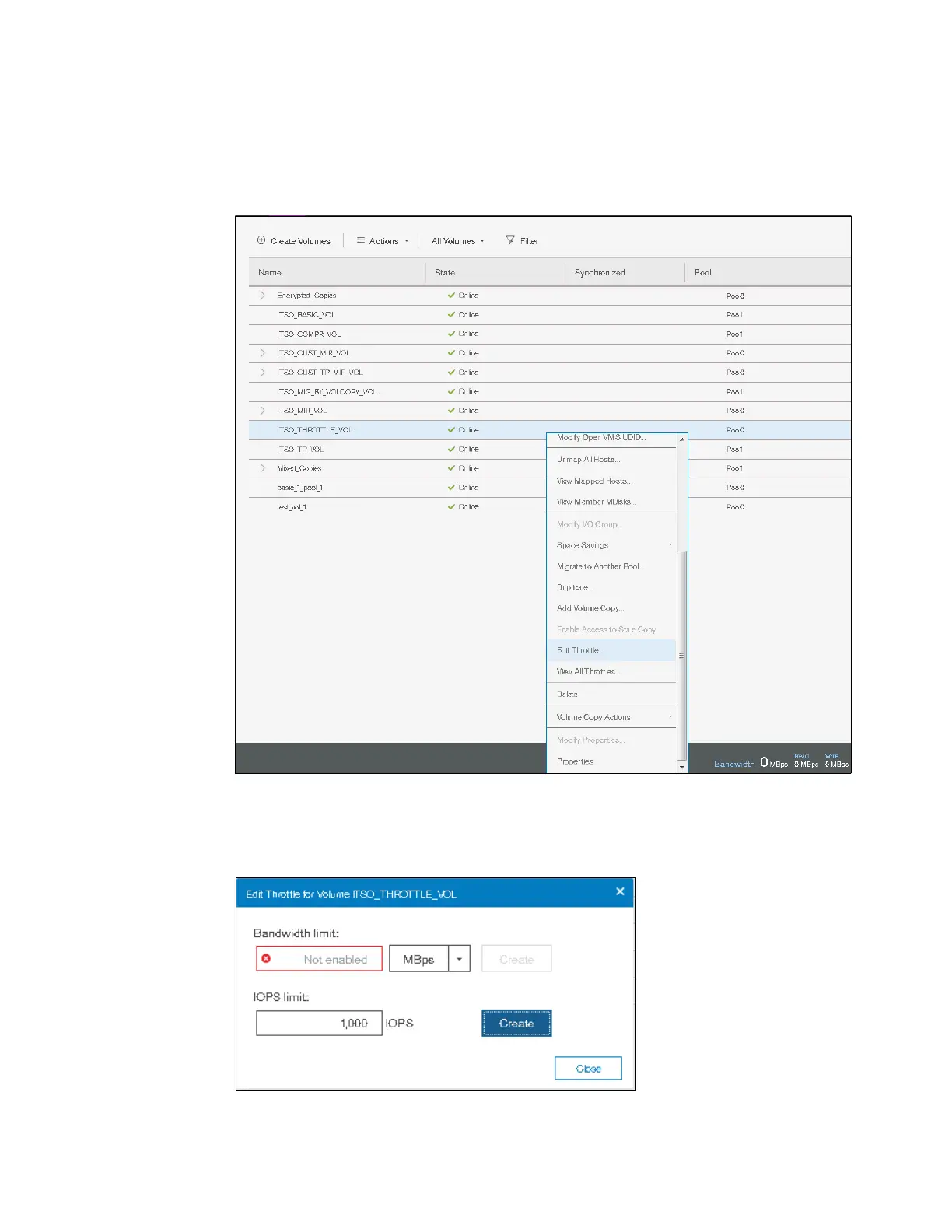

1. From the Volumes window, select the desired volume to throttle as shown in Figure 6-65.
Figure 6-65 Edit Throttle
2. A window will come up where you can set the throttle either in terms of IOPS or bandwidth
(MBps) or both. In our example, we set the throttle on IOPS as shown in Figure 6-66.
Figure 6-66 IOPS throttle on a volume

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
