498 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

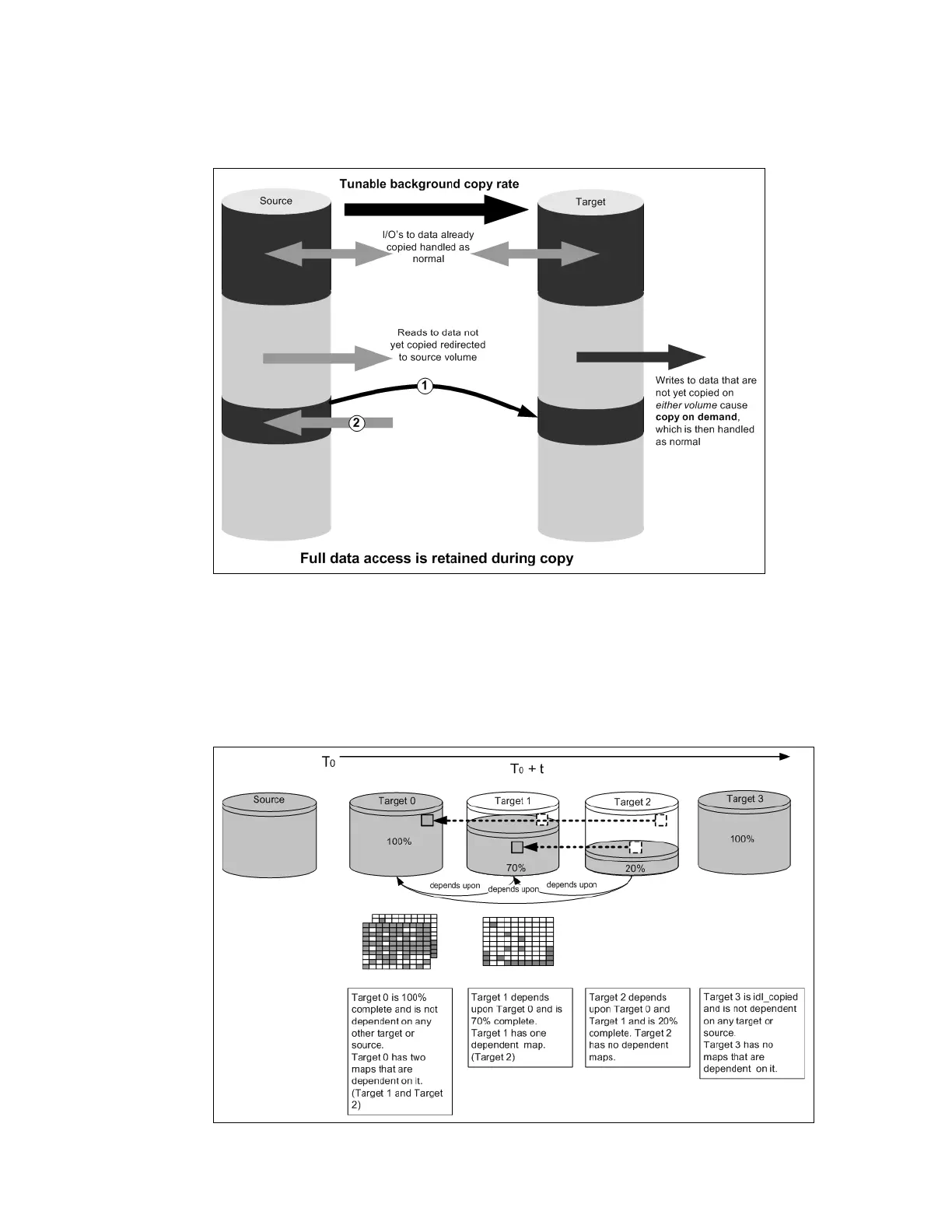

Figure 10-6 shows how the background copy runs while I/Os are handled according to the
indirection layer algorithm.
Figure 10-6 I/O processing with FlashCopy
10.3.6 Interaction and dependency between multiple target FlashCopy
mappings
Figure 10-7 shows a set of four FlashCopy mappings that share a common source. The
FlashCopy mappings target volumes Target 0, Target 1, Target 2, and Target 3.
Figure 10-7 Interactions among multiple target FlashCopy mappings

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
