256 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

5.5.5 Creating SAS hosts

To create a SAS host, complete the following steps:

1. From the main screen, follow the path Hosts → Hosts → Add Host, and the host

configuration wizard opens, as shown in Figure 5-68.

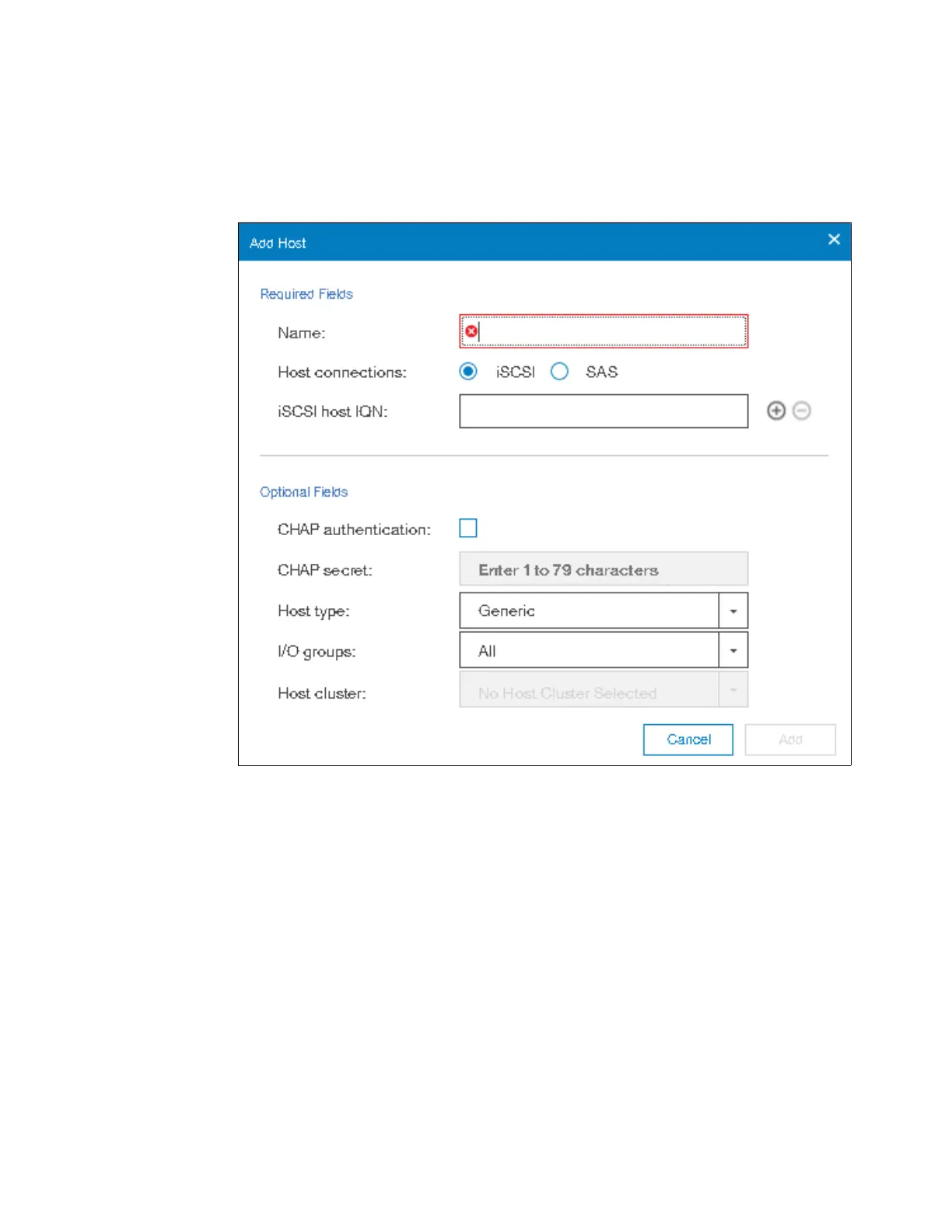

Figure 5-68 The host configuration wizard
