Chapter 5. Host configuration 255
10.To modify virtual LAN (VLAN) settings, right-click the port again and click Modify VLAN.
The window that is shown in Figure 5-66 opens. Check Enable to turn on VLAN tagging
and set the tag in the field that is provided. The failover port needs to belong to the same
VLAN so leave Apply change to the failover port too checked. Click Modify to confirm.

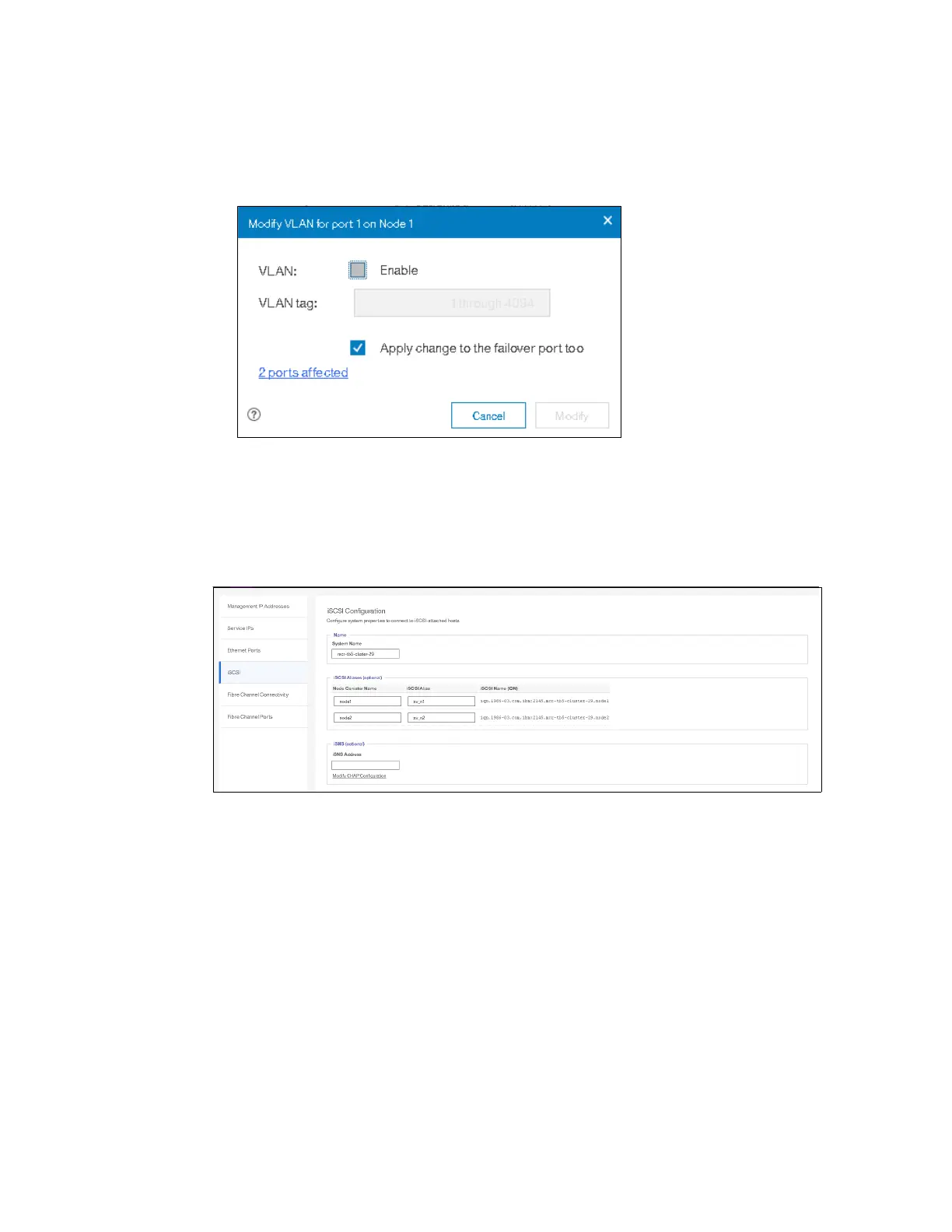

Figure 5-66 Modifying VLAN settings for Port 2 of Node 1
11.Repeat the previous steps for all ports that need to be configured.
12.You can also configure iSCSI aliases, an iSNS name, and CHAP authentication. These
options are located in the iSCSI Configuration view. To access this view, click iSCSI in the
Network settings view, as shown in Figure 5-67.
Figure 5-67 Advanced iSCSI configuration
The IBM Storwize V5000 is now configured and ready for iSCSI use. Document the initiator
names of your storage canisters (Figure 5-60 on page 252) because you need them later. To
create volumes and map them to a host, go to Chapter 6, “Volume configuration” on
page 287.
