IBM Storwize V5030 User Manual

750 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
13.3.2 Start activation process during initial system setup
One of the steps in the initial setup enables encryption license activation. The system asks
“Was the encryption feature purchased for this system?”. To activate encryption at this
stage, follow these steps:
1. Select Yes, as shown in Figure 13-5.

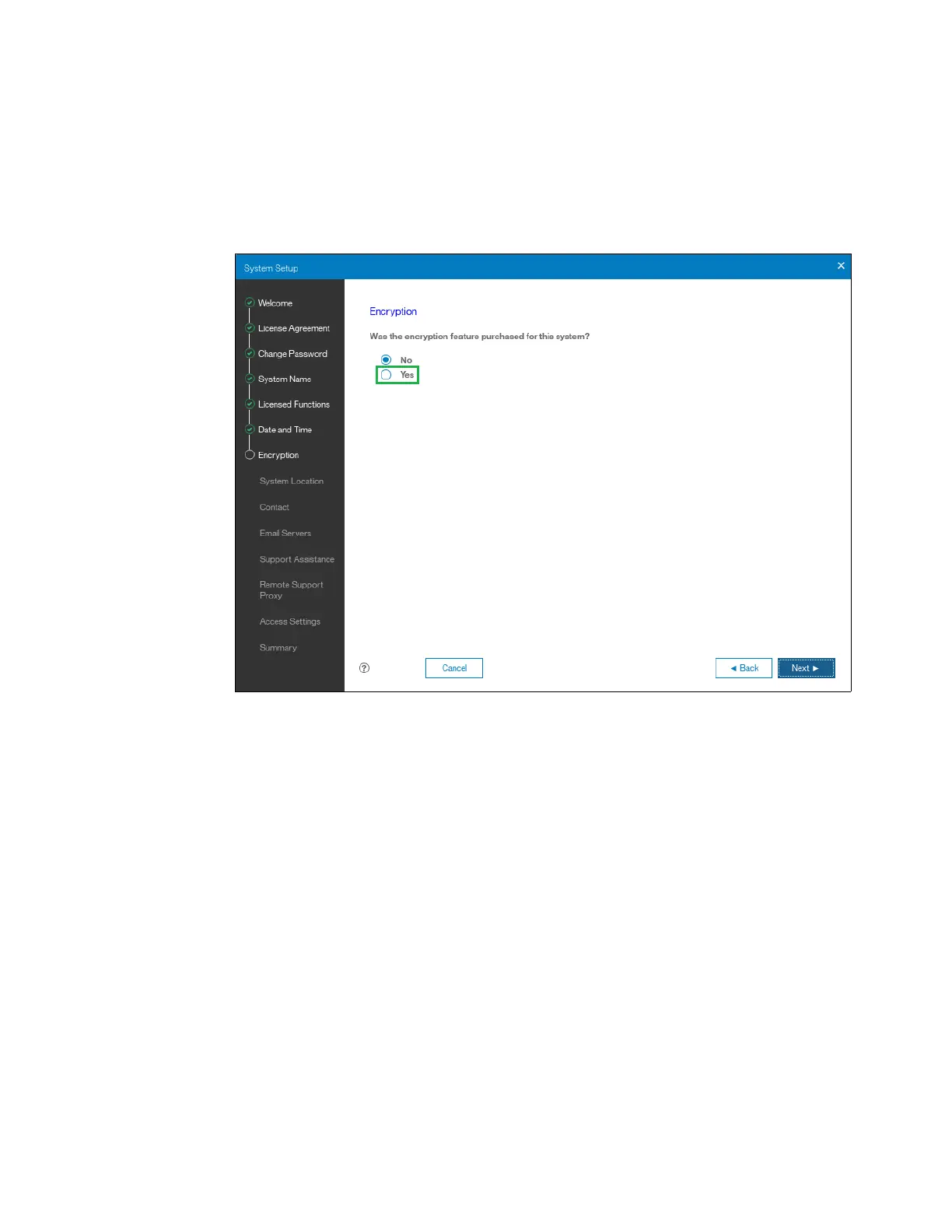

Figure 13-5 Encryption activation during initial system setup
2. The Encryption window displays information about your storage system, as shown in
Figure 13-6 on page 751.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
