Chapter 5. Host configuration 267

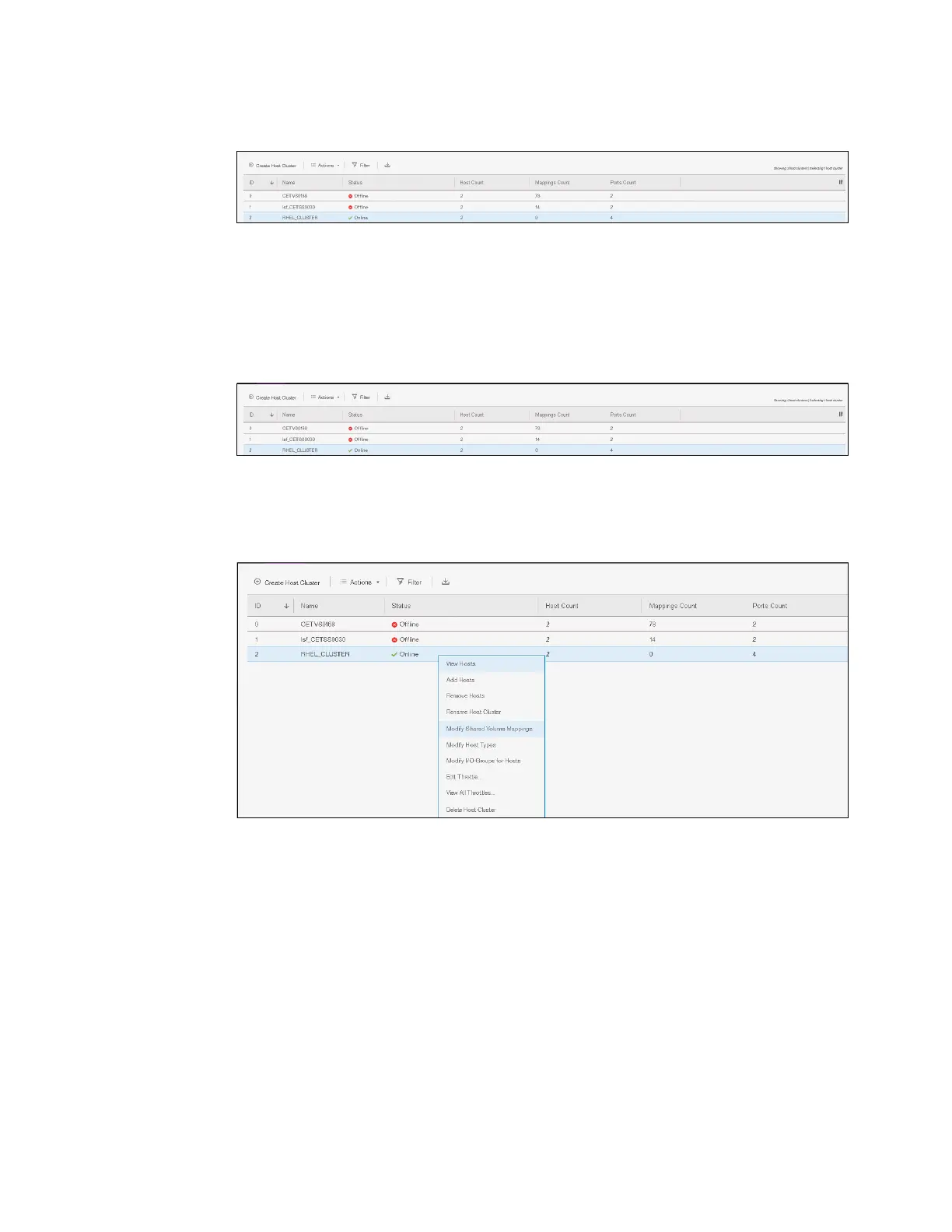

3. Click Close and you will be back on the Host Clusters pane, as shown in Figure 5-86.
Figure 5-86 Host Clusters pane
5.6.4 Assigning a volume to a Host Cluster
To assign a volume to a host cluster follow the steps listed:
1. From the Host Clusters pane, select the desired host cluster, as shown in Figure 5-87.
Figure 5-87 Host Clusters
2. Right-click the desired host cluster and select Modify Shared Volume Mappings, as shown
in Figure 5-88.
Figure 5-88 Modify Shared Volume Mapping for Host Cluster

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
