268 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

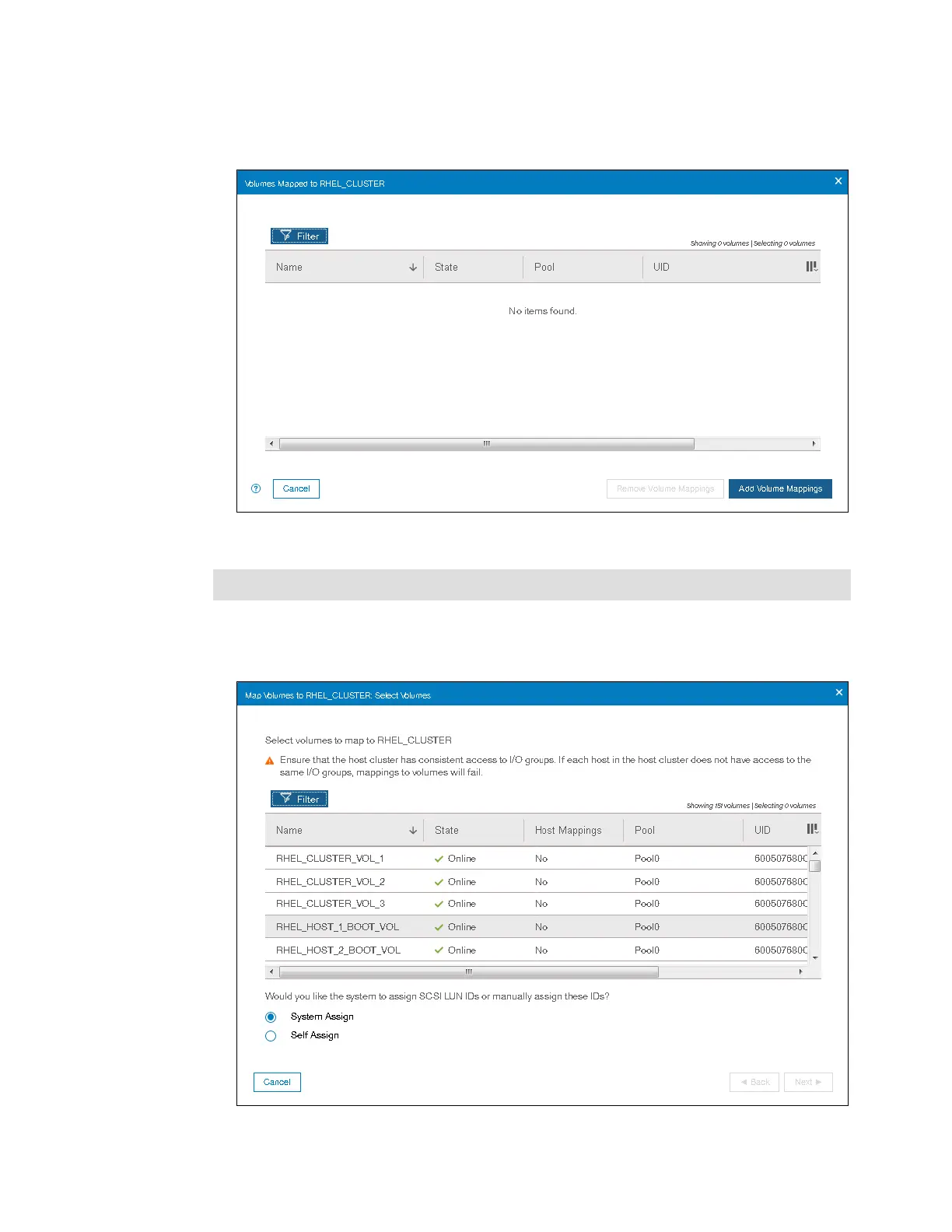

3. A window showing list of volumes currently mapped to the selected host cluster shows up
as shown in Figure 5-89.
Figure 5-89 Volumes mapped to host cluster
4. Click Add Volume Mappings, which brings up a window listing the volumes that you can
select to assign to a host cluster, as shown in Figure 5-90.
Figure 5-90 Volume list
Note: If there are no volumes mapped to the selected host cluster, the list will be empty.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
