378 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
8.1.1 Modifying volume mappings
Complete the following steps:

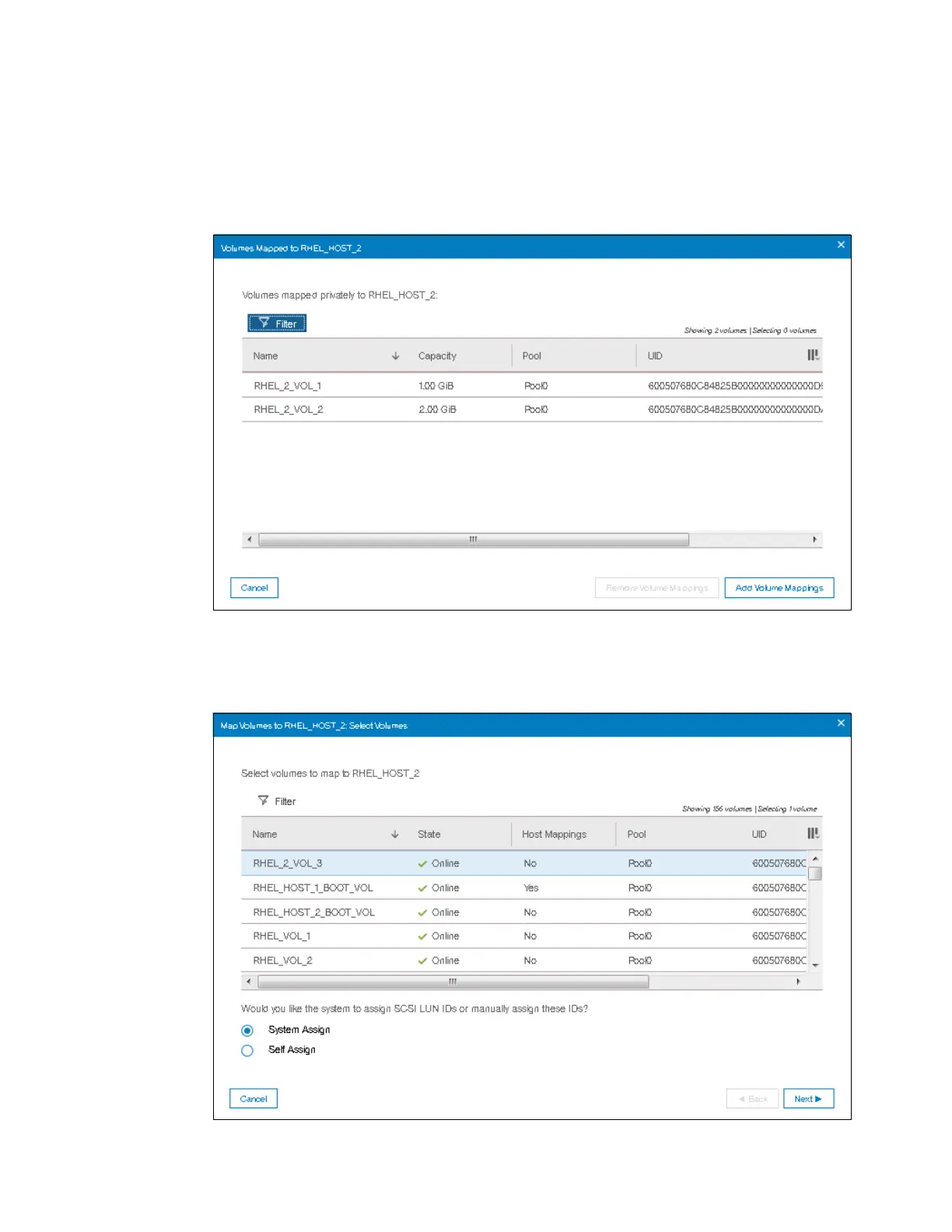

1. From the Hosts panel, after you select a host and click Actions, select Modify Volume
Mappings to open the Modify Host Mappings panel, as shown in Figure 8-4.
Figure 8-4 Host mappings panel
2. Click Add Volume Mappings. A window will come up listing all the additional volumes that
can be mapped to the selected host as shown in Figure 8-5.
Figure 8-5 Select a host to modify

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
