IBM Storwize V5030 User Manual

Chapter 8. Advanced host and volume administration 377
Complete the following steps:

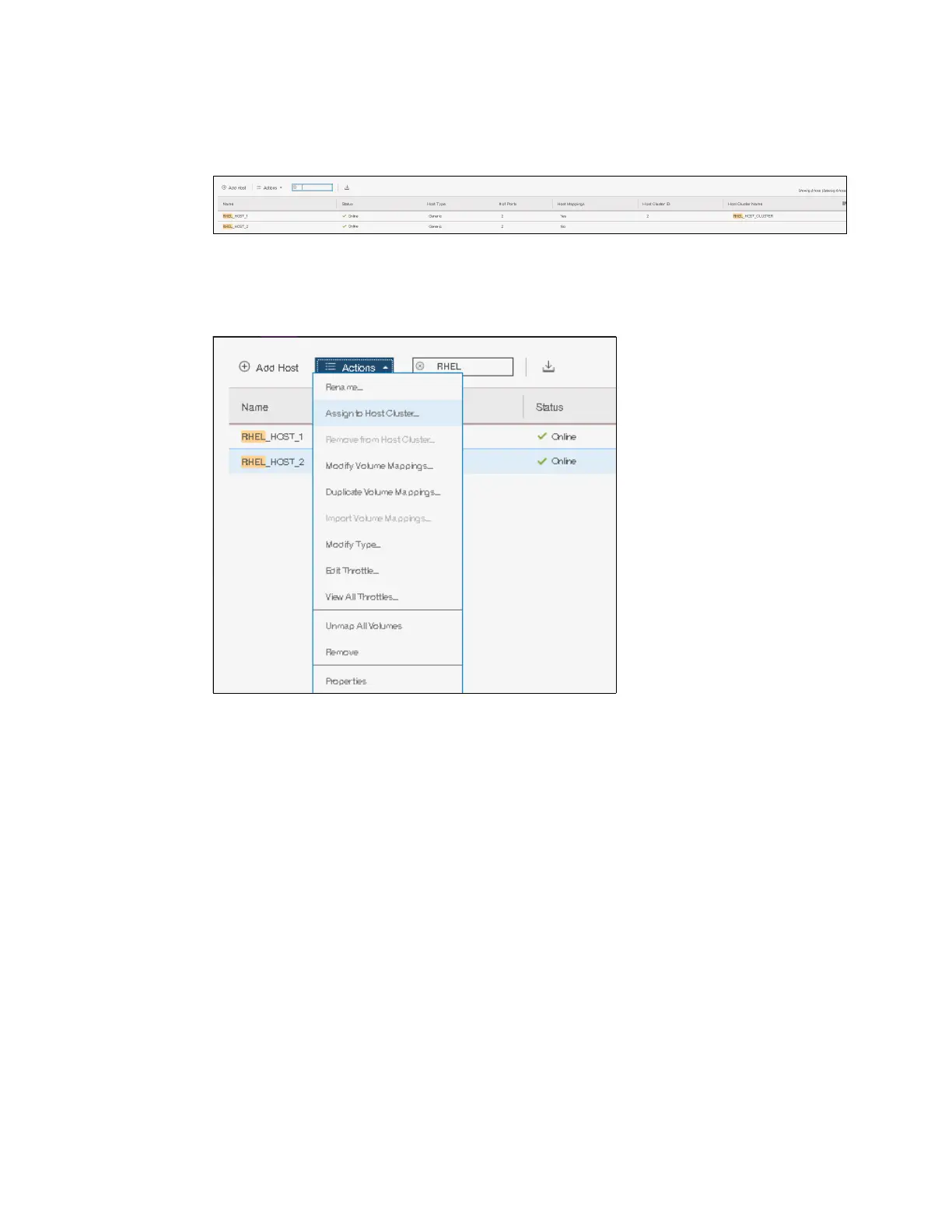

1. Select Hosts to open the Hosts panel, as shown in Figure 8-2.
Figure 8-2 Hosts panel
2. Select a host and click Actions (as shown in Figure 8-3), or right-click the host to show
the available actions.
Figure 8-3 Actions menu on the Hosts panel
As shown in Figure 8-3, several actions are associated with host mapping. For more
information, see 8.1.1, “Modifying volume mappings” on page 378 and 8.1.2, “Unmapping
volumes from a host” on page 381.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
