Chapter 10. Copy services 541

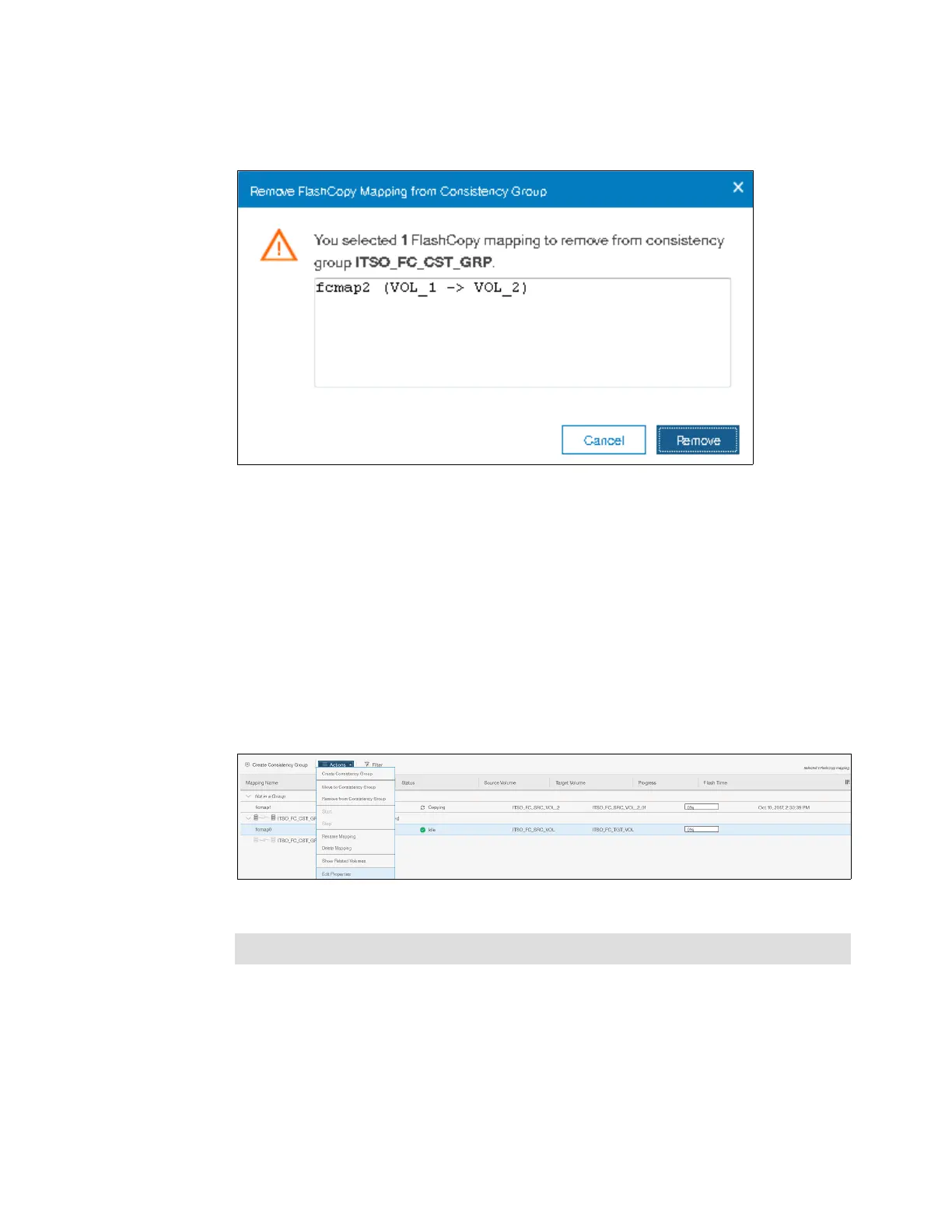

4. In the Remove FlashCopy Mapping from Consistency Group window, click Remove, as
shown in Figure 10-56.
Figure 10-56 Remove FlashCopy Mapping from Consistency Group
When you click Remove, the desired FlashCopy map is removed from the consistency
group.
10.4.10 Modifying a FlashCopy mapping
Complete the following steps to modify a FlashCopy mapping:
1. From the main panel, click Copy Services → FlashCopy or Consistency Groups, or
FlashCopy Mappings.
2. In the table, select the FlashCopy mapping that you want to modify.
3. Click Actions → Edit Properties, as shown in Figure 10-57.
Figure 10-57 Edit Properties
Tip: You can also right-click a FlashCopy mapping and select Edit Properties.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
