Chapter 5. Host configuration 271
5.6.5 Remove volume mapping from a host cluster
To remove a volume mapping from a host cluster, follow the steps as listed.

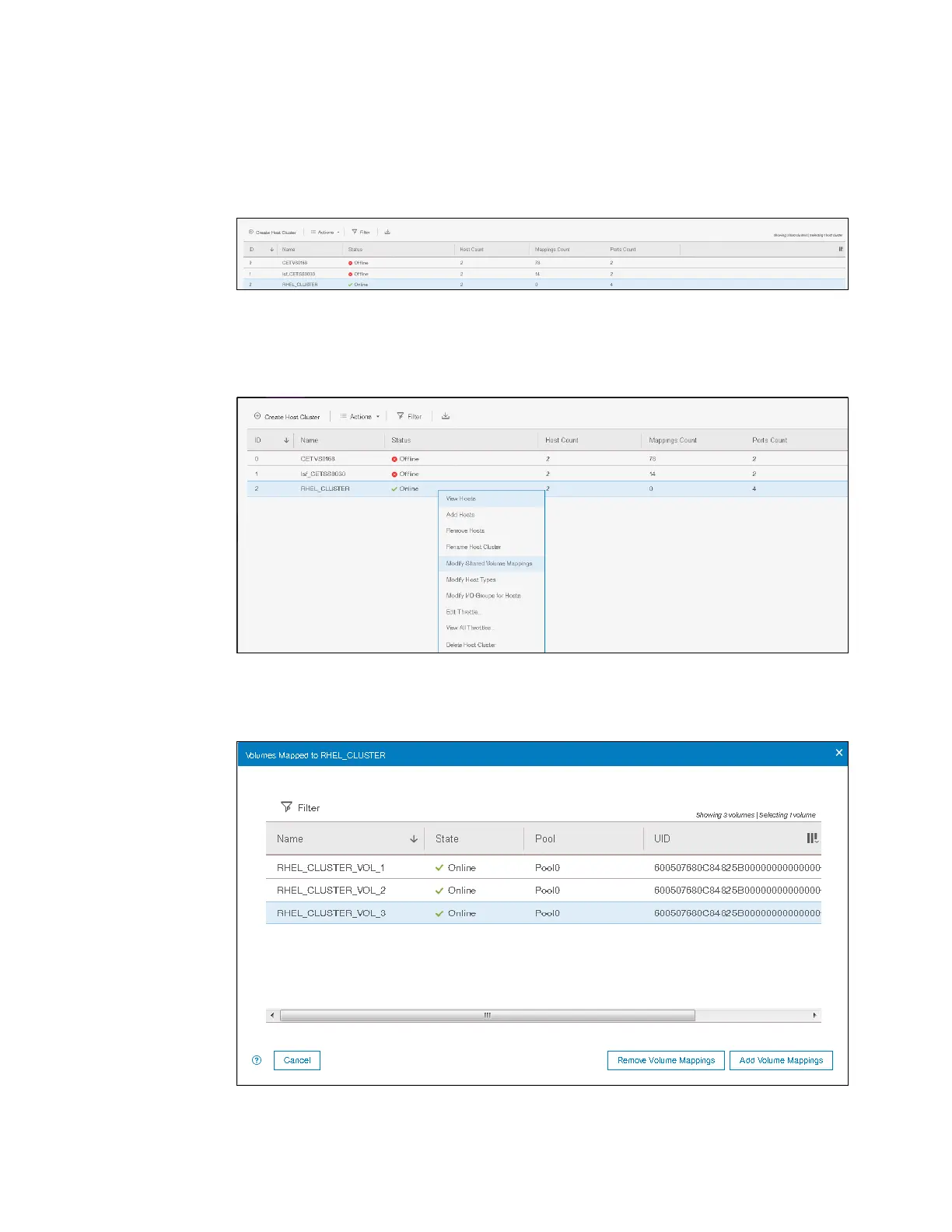

1. From the Host Clusters pane, select the desired host cluster as shown in Figure 5-94.
Figure 5-94 Host Clusters
2. Right-click the desired host cluster and select Modify Shared Volume Mappings as shown
in Figure 5-95.
Figure 5-95 Modify Shared Volume Mapping for Host Cluster
3. A window showing a list of volumes mapped to the host cluster is shown in Figure 5-96.
Figure 5-96 List of volumes mapped to a host cluster

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
