Chapter 13. Encryption 757
13.3.5 Activate the license manually
To manually activate the encryption license for a node, follow this procedure:
1. Select Activate License Manually, the Manual Activation window opens, as shown in
Figure 13-17.

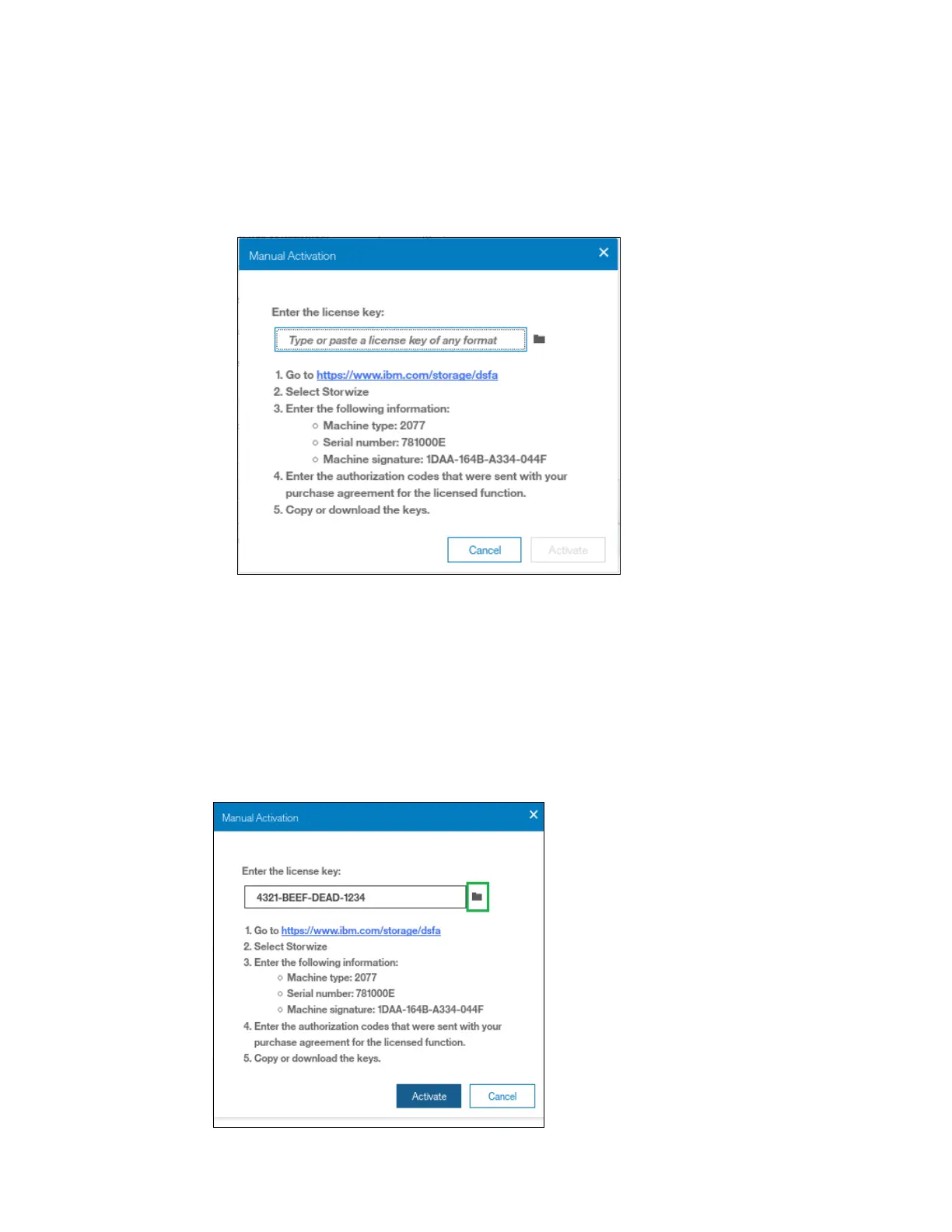

Figure 13-17 Manual encryption license activation window
2. If you have not done so already, you need to obtain the encryption license for the node.
The information required to obtain the encryption license is displayed in the Manual
Activation window. Use this data to follow the instructions in 13.3.1, “Obtaining an
encryption license” on page 749.
3. You can enter the license key either by typing it, by using cut or copy and paste, or by
clicking the folder icon and uploading to the storage system the license key file
downloaded from DSFA. In Figure 13-18, the sample key is already entered. You can now
click Activate.
Figure 13-18 Entering an encryption license key

Table of Contents

Other manuals for IBM Storwize V5030

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the IBM Storwize V5030 and is the answer not in the manual?

IBM Storwize V5030 Specifications

General IconGeneral
ModelIBM Storwize V5030
CategoryStorage
Controller Enclosures1 or 2
Maximum Drives240
RAID Levels0, 1, 5, 6, 10
VirtualizationYes
Data CompressionYes
Maximum Hosts512
Form Factor2U
Drive TypesSAS, NL-SAS, SSD
Host Interface8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores8 per controller
