IBM Storwize V5030 User Manual

252 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
5.5.4 Configuring the IBM Storwize V5000 for iSCSI host connectivity
Complete the following steps to enable iSCSI connectivity:

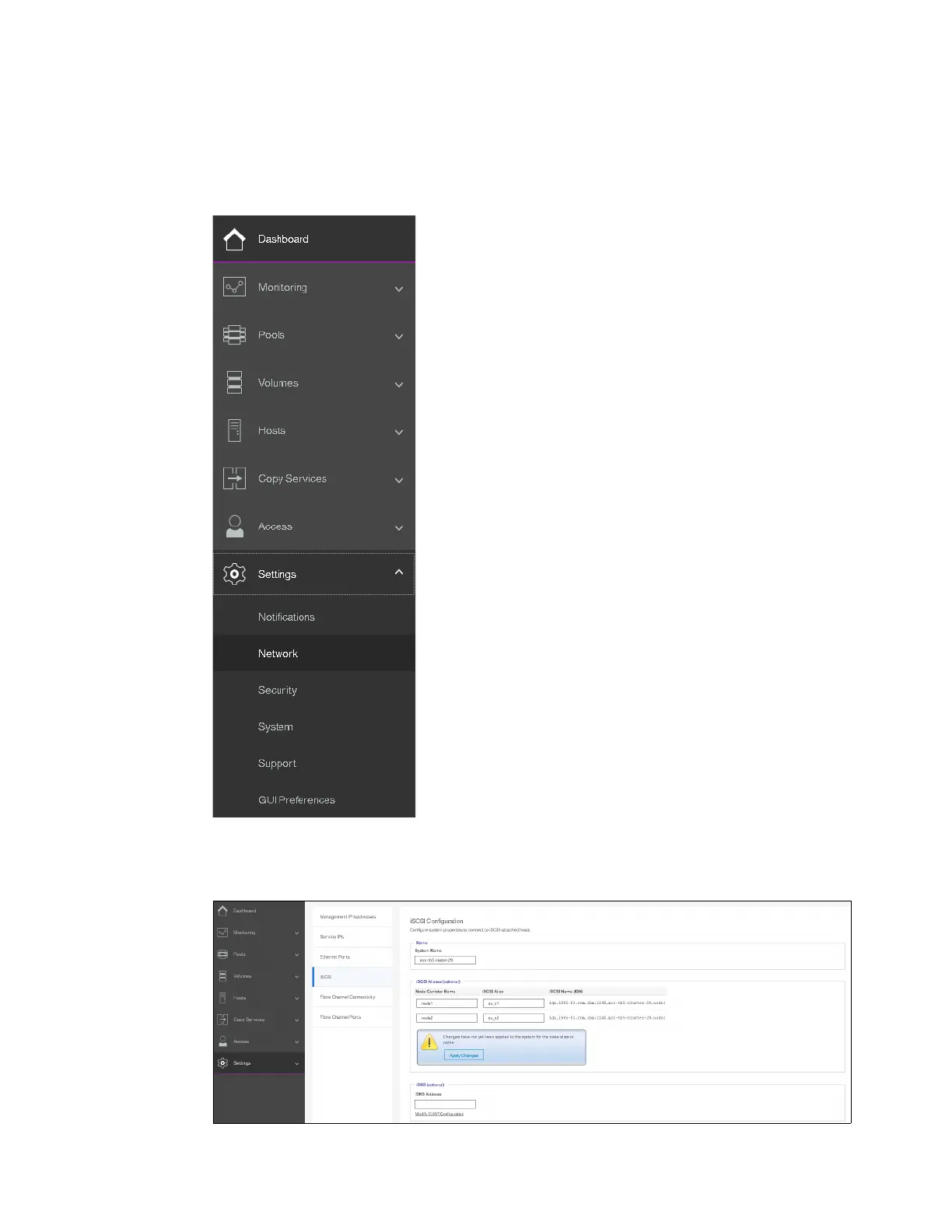

1. Switch to the configuration Overview window and select Network (Figure 5-59).
Figure 5-59 Configuration: Network
2. Select iSCSI and the iSCSI Configuration window opens (Figure 5-60).
Figure 5-60 iSCSI Configuration window

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
