Chapter 8. Advanced host and volume administration 379
3. Select the volume that you need to map to the host. Also indicate whether you would like
to let the system assign the SCSI ID or you want to assign the SCSI ID by yourself. In this
example, RHEL_2_VOL_3 volume is being mapped with the user supplied SCSI ID as
shown in Figure 8-6.

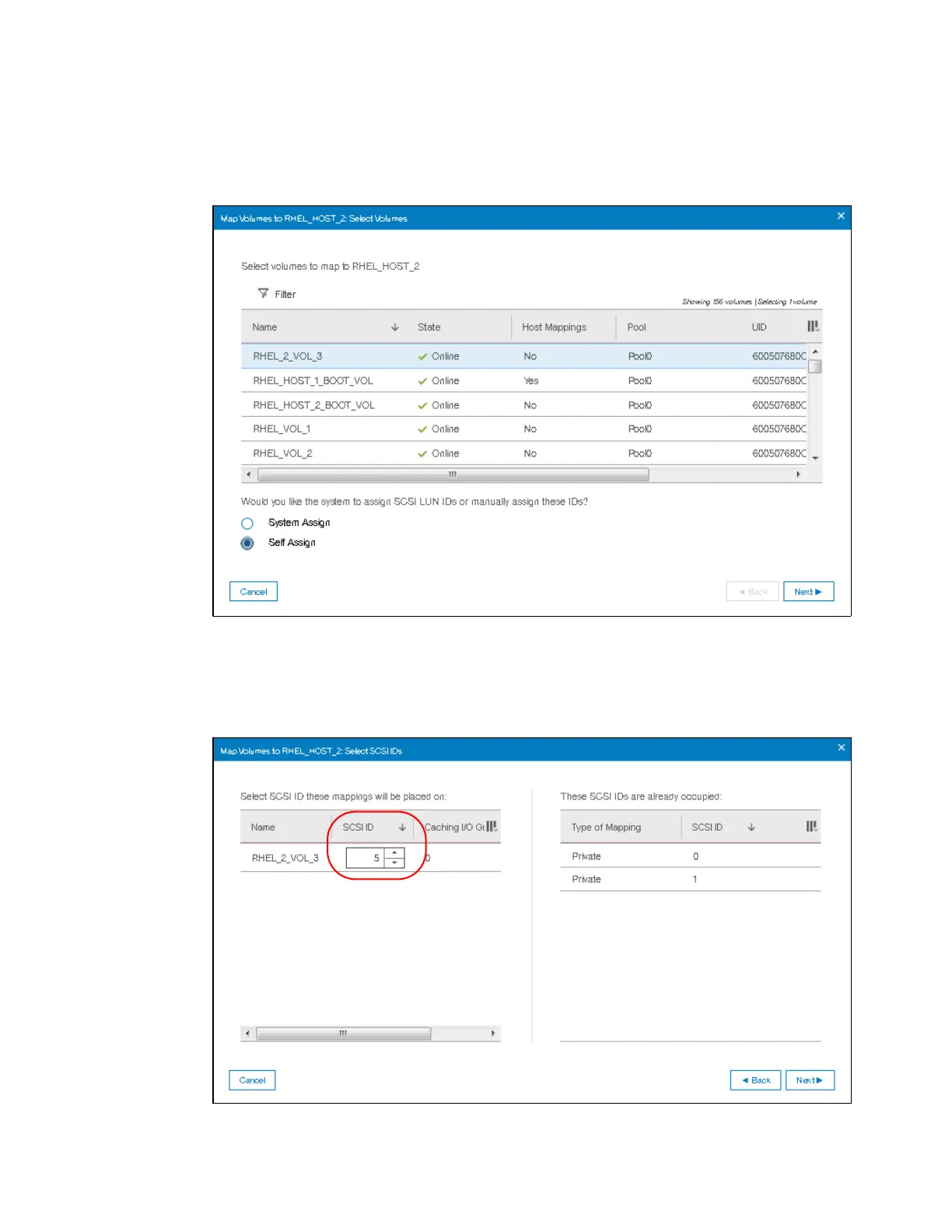

Figure 8-6 Selecting the volume and SCSI ID for mapping to a host
4. Click Next. As shown in Figure 8-7, a window opens where the user can provide the SCSI
ID to be used for the mapping. The right hand pane side also shows the current SCSI ID’s
being used for mapping other volumes to the same host.
Figure 8-7 Selecting the SCSI ID for the mapping
