IBM Storwize V5030 User Manual

Chapter 5. Host configuration 257

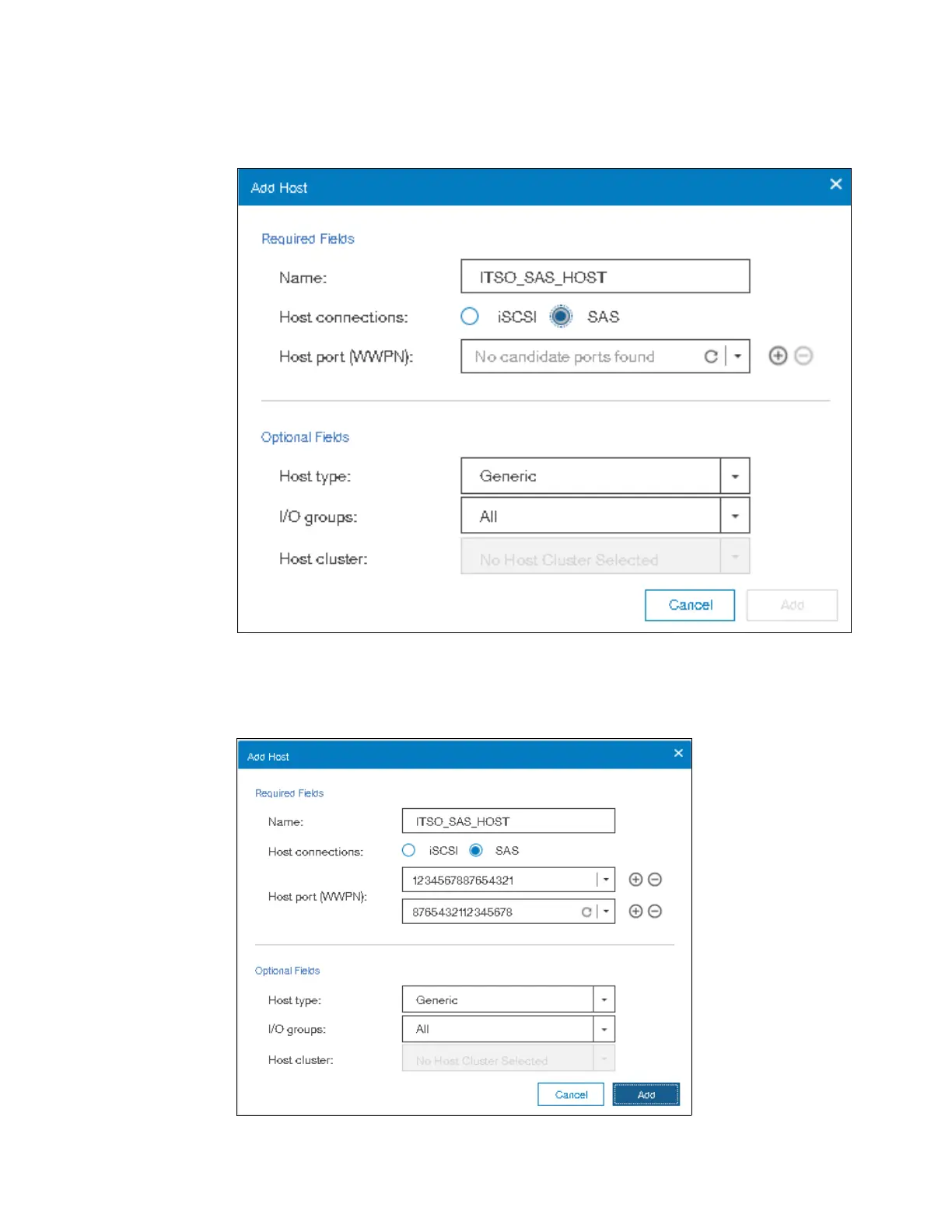

2. Enter a descriptive host name and click SAS under Host Connections option, as shown
in Figure 5-69.
Figure 5-69 SAS WWPNs that are visible to the system
3. Click the Host port (WWPN) drop down and select the desired WWPNs belonging to the
host from the drop-down, as shown in Figure 5-70.
Figure 5-70 SAS WWPNs

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
