Chapter 5. Host configuration 243

6. If you are creating a Hewlett-Packard UNIX (HP-UX) or Target Port Group Support (TPGS)

host, select Advanced, and more options appear (Figure 5-46). Select your host type.

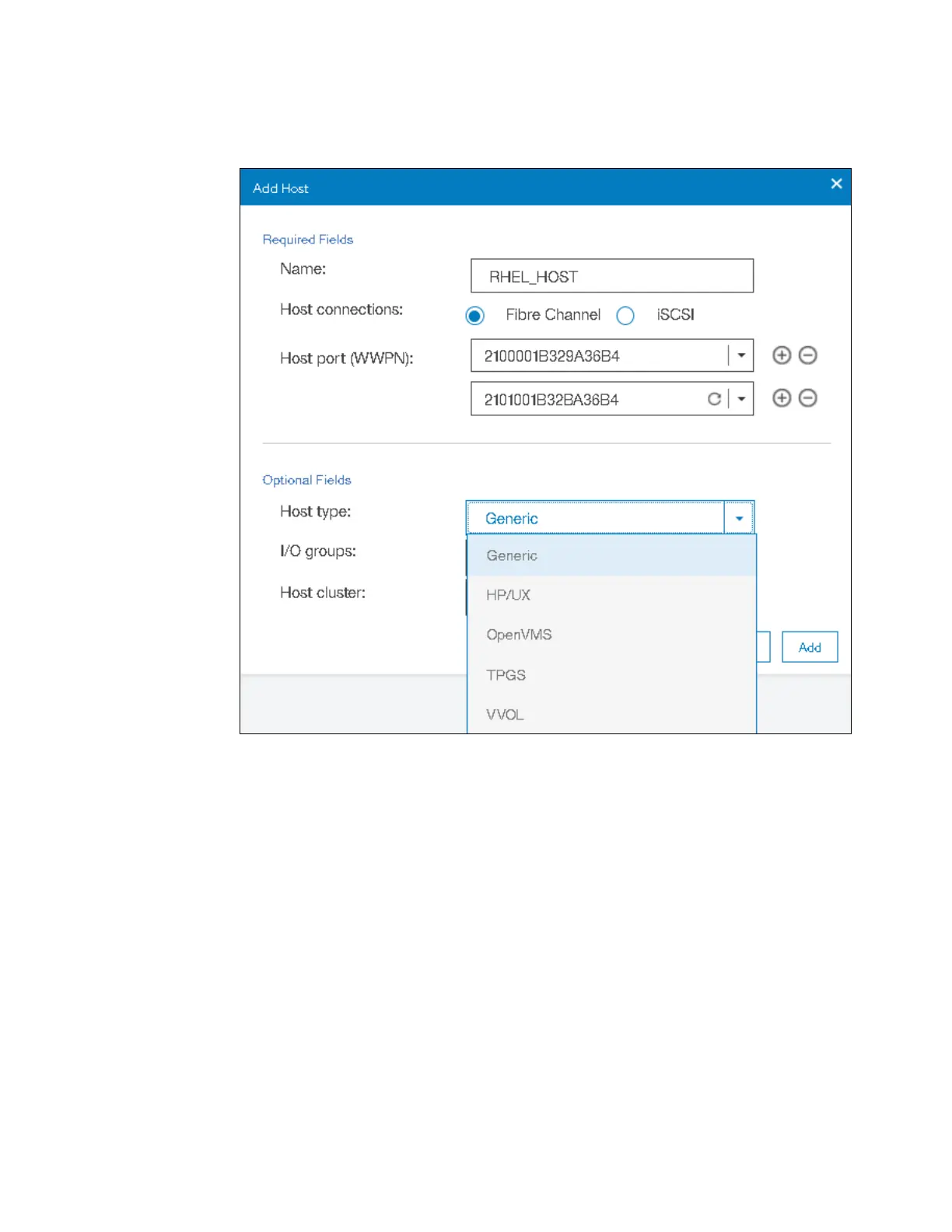

Figure 5-46 Add Host: Advanced Settings
