Chapter 5. Host configuration 245

8. Select the desired host cluster if any as shown in Figure 5-48.

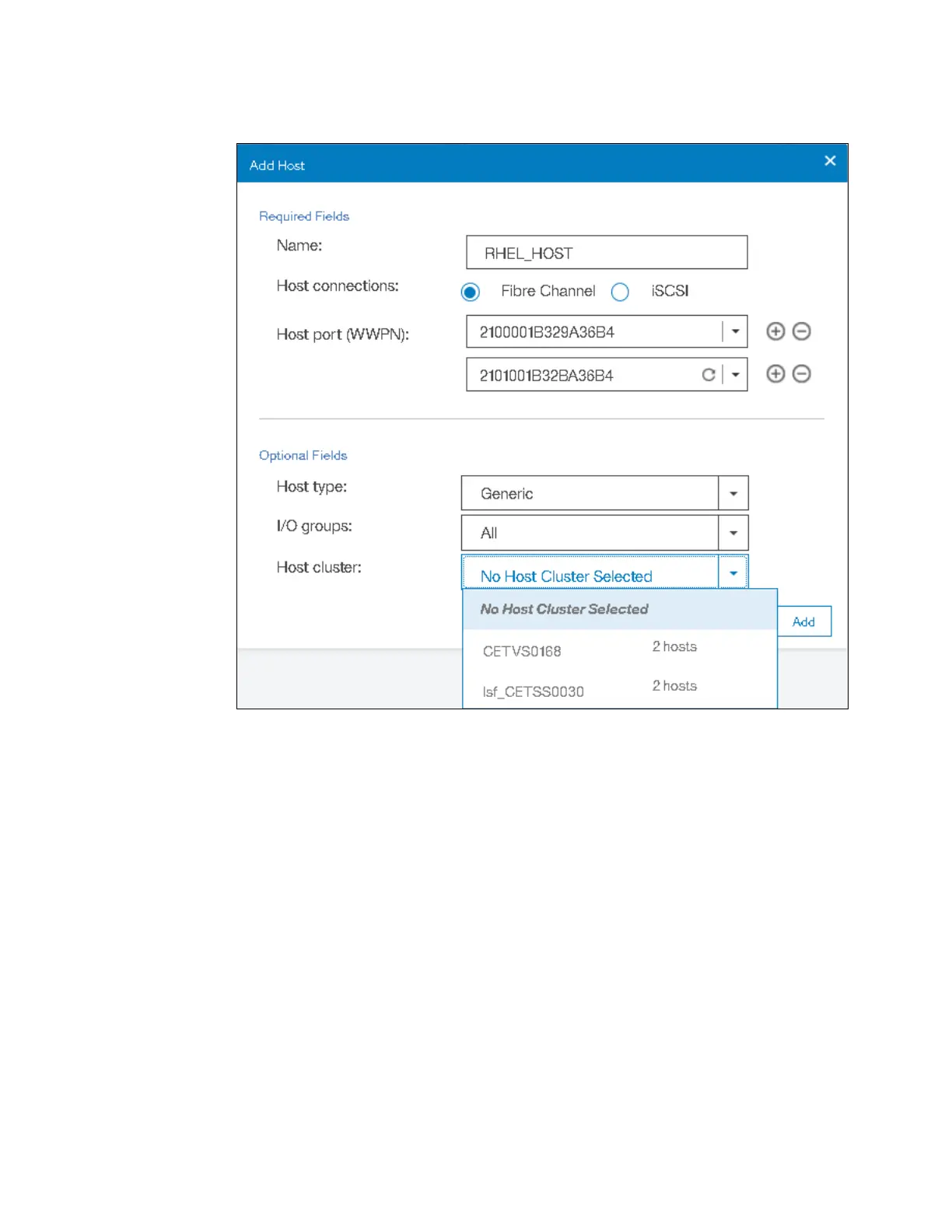

Figure 5-48 Selecting Host cluster
