IBM Storwize V5030 User Manual

Chapter 5. Host configuration 261

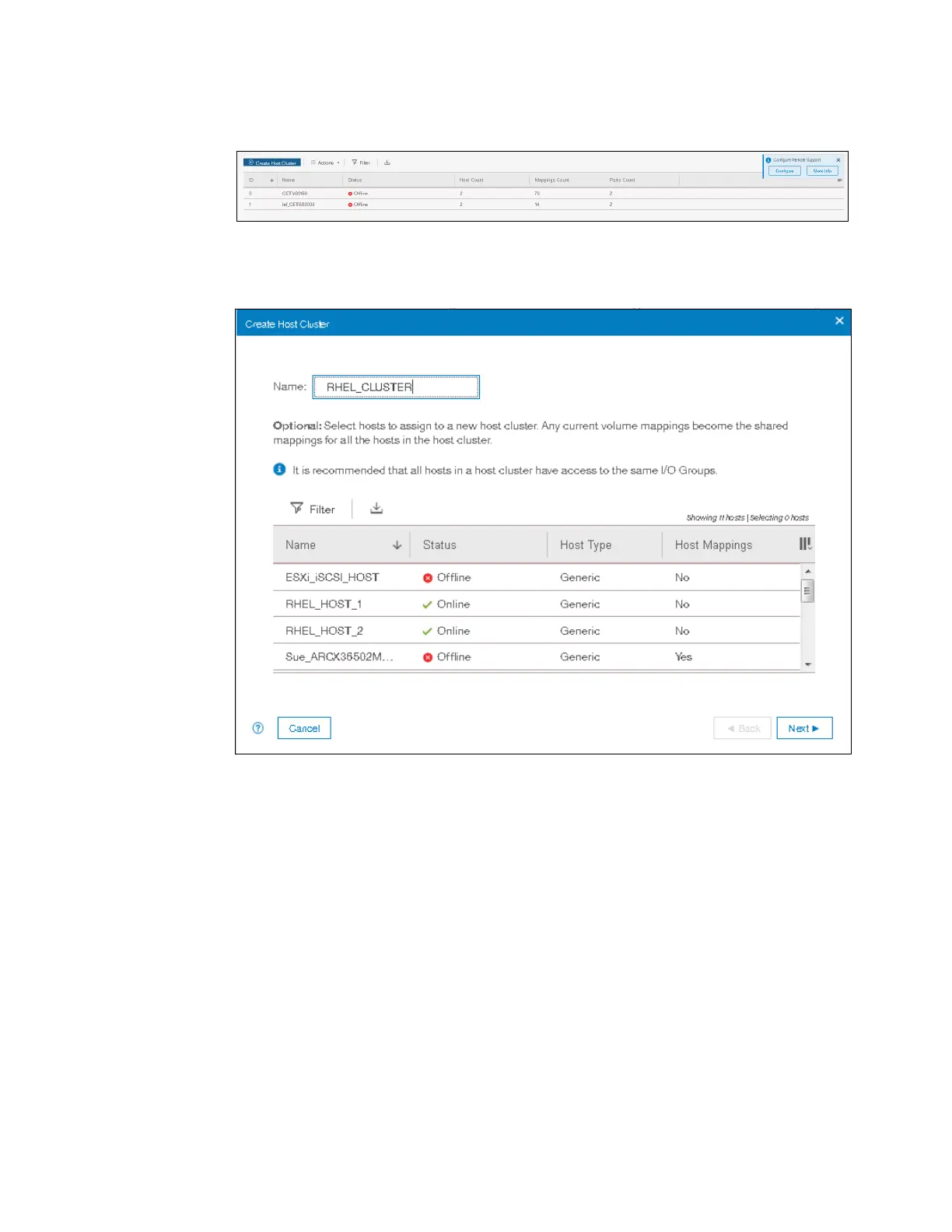

2. Click Create Host Cluster, as shown in Figure 5-74.
Figure 5-74 Create Host Cluster
3. Provide the name of the Host Cluster that you want to create, as shown in Figure 5-75.
Figure 5-75 Defining Host Cluster
4. At this point, you can either select the list of hosts that are going to be the part of the host
cluster or you can defer that action. In the given example, we have chosen to defer the
action of adding hosts to Host Cluster definition as that part is covered in 5.6.2, “Adding a
member to a host cluster” on page 263.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
