IBM Storwize V5030 User Manual

Chapter 10. Copy services 531
To create and start a backup, complete the following steps:
1. From the main panel, click Copy Services → FlashCopy.
2. Select the volume that you want to back up, and click Actions → Create Backup, as
shown in Figure 10-35.

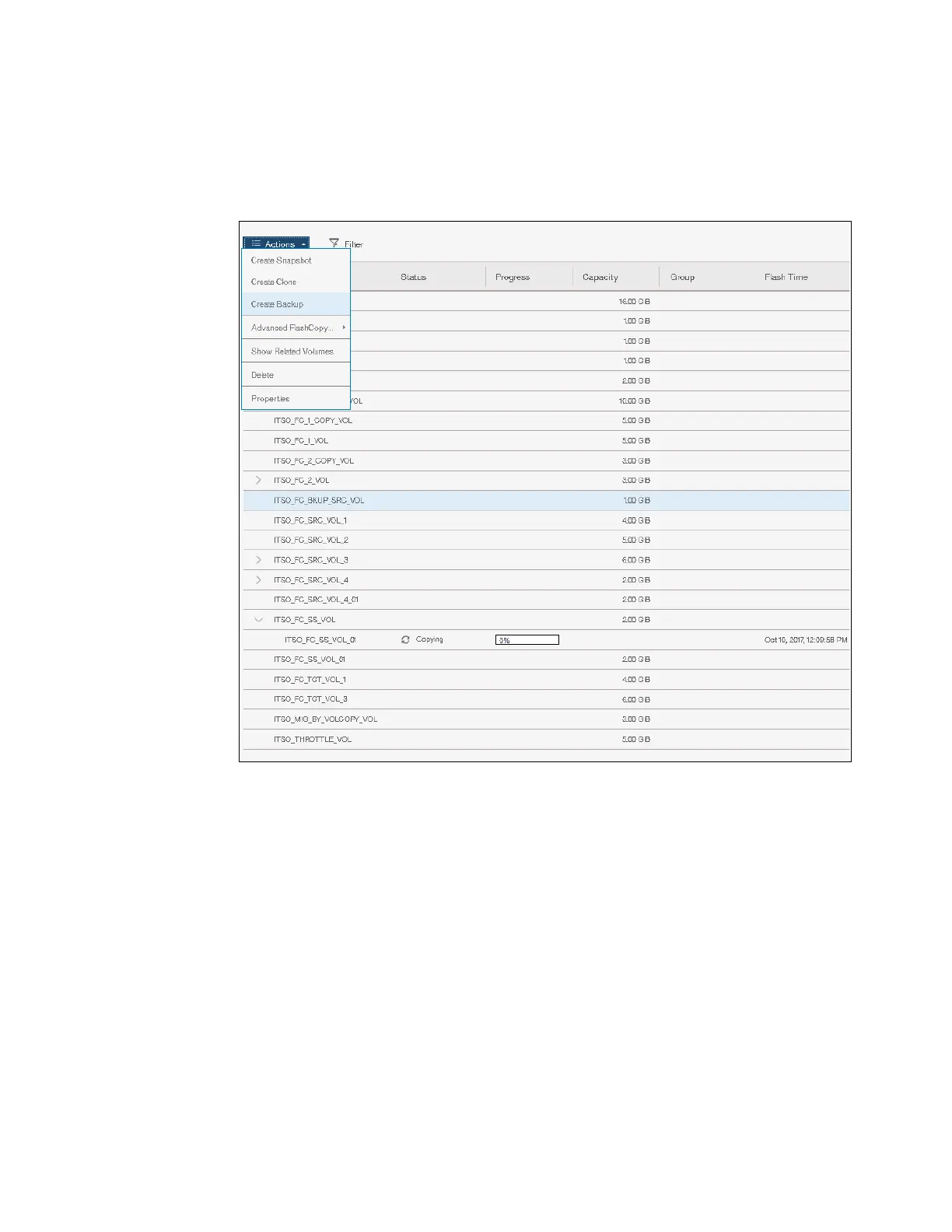

Figure 10-35 Create Backup option
3. A volume is created as a target volume for this backup in the same pool as the source
volume. The FlashCopy mapping is created and started.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
