IBM Storwize V5030 User Manual

Chapter 10. Copy services 599

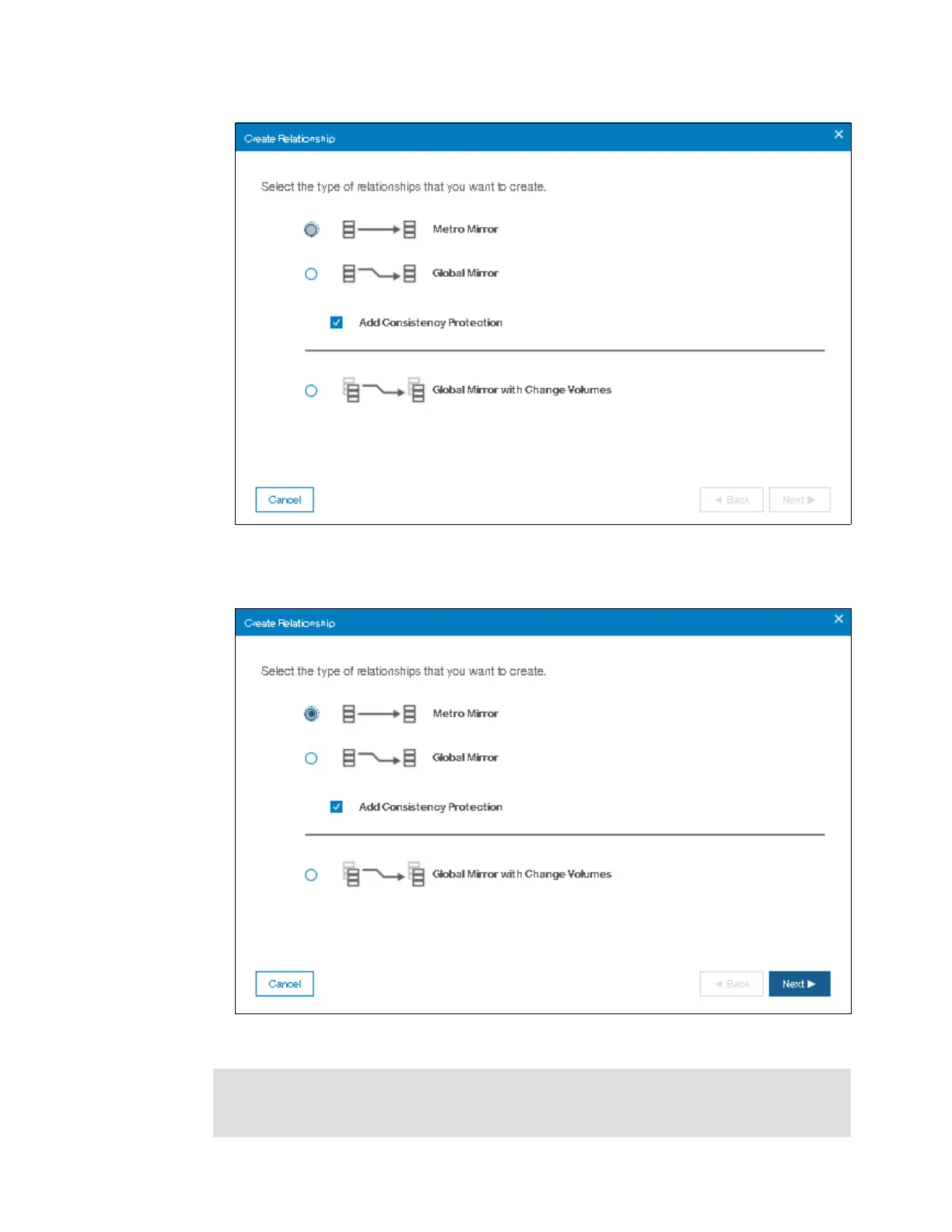

Figure 10-101 Select the type of relationship that you want to create
5. We want to create a Metro Mirror relationship. See Figure 10-102. Click Next.
Figure 10-102 Selecting Metro Mirror as the type of relationship
Note: Starting from V7.8.1, consistency protection via Change Volume has been enabled
by default. Refer to 10.8, “Consistency protection for Remote and Global mirror” on
page 585 for more information on consistency protection.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
