Chapter 10. Copy services 601
7. In the New Relationship window that is shown in Figure 10-104, you can create
relationships. Select a master volume in the Master drop-down list. Then, select an
auxiliary volume in the Auxiliary drop-down list for this master and click Add. If needed,
repeat this step to create other relationships.

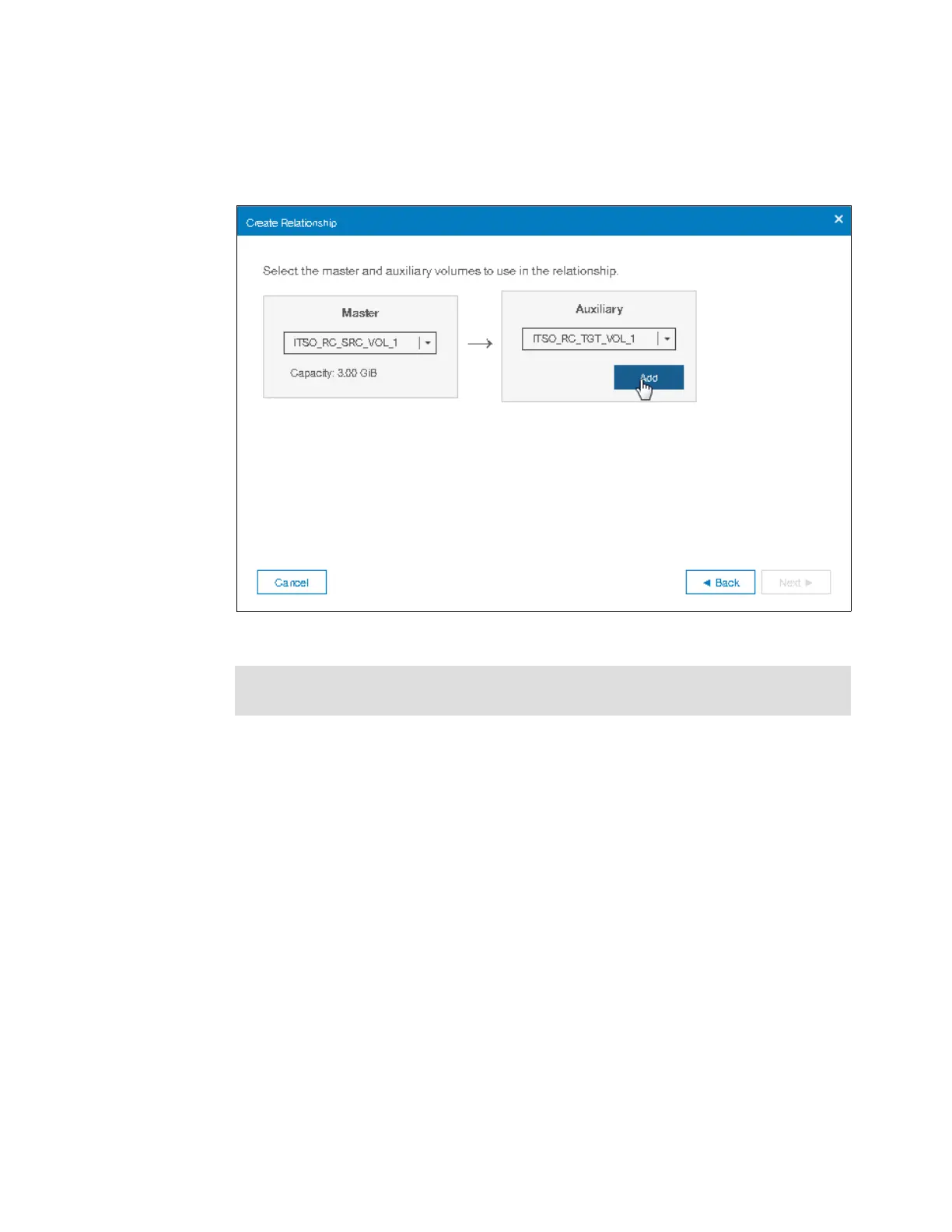

Figure 10-104 Select a volume for mirroring
Important: The master and auxiliary volumes must be of equal size. Therefore, only
the targets with the appropriate size are shown in the list for a specific source volume.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
