IBM Storwize V5030 User Manual

764 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

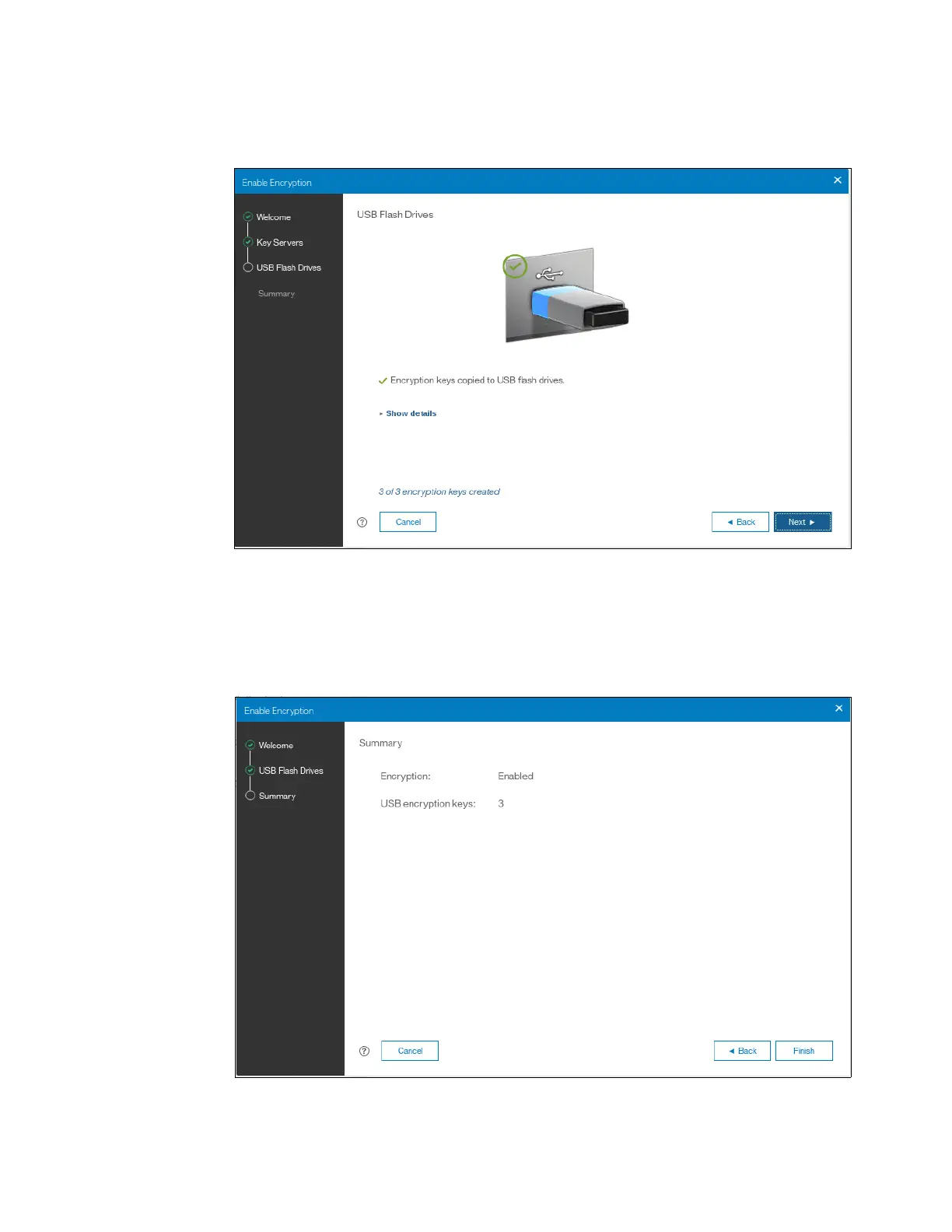

4. After the minimum required number of drives is detected, the encryption keys are
automatically copied on the USB flash drives, as shown in Figure 13-26.
Figure 13-26 Writing the master access key to USB flash drives
5. You can keep adding USB flash drives or replacing the ones already plugged in to create
new copies. When done, click Next.
6. The number of keys that were created is shown in the Summary tab, as shown in
Figure 13-27. Click Finish
to finalize the encryption enablement.
Figure 13-27 Commit the encryption enablement

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
