IBM Storwize V5030 User Manual

Chapter 13. Encryption 795

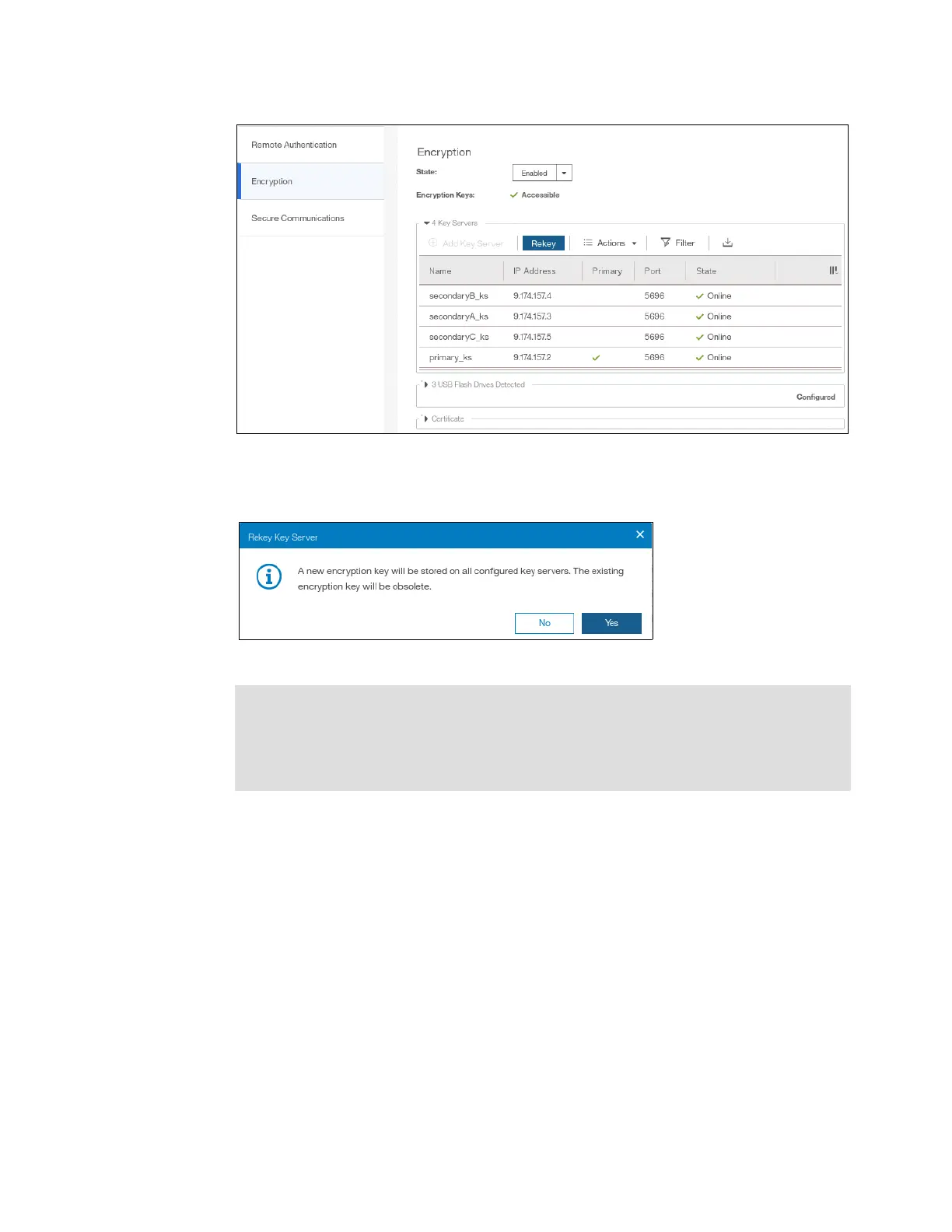

Figure 13-75 Start rekey on SKLM key server
3. Click Yes in the next window to confirm the rekey operation, as shown in Figure 13-76.
Figure 13-76 Confirm key server rekey operation
Note: The rekey operation is performed only on the primary key server configured in
the system. If you have additional key servers configured apart from the primary one,
they will not hold the updated encryption key until they obtain it from the primary key
server. To restore encryption key provider redundancy after a rekey operation, replicate
the encryption key from the primary key server to the secondary key servers.

IBM Storwize V5030 Specifications

General

Model	IBM Storwize V5030
Category	Storage
Controller Enclosures	1 or 2
Maximum Drives	240
RAID Levels	0, 1, 5, 6, 10
Virtualization	Yes
Data Compression	Yes
Maximum Hosts	512
Form Factor	2U
Drive Types	SAS, NL-SAS, SSD
Host Interface	8 Gb FC, 16 Gb FC, 10 Gb iSCSI, 12 Gb SAS
Processor Cores	8 per controller
