1-7
$9 MEMORY UP/DOWN SWITCHES [Y]/[Z] (p. 8-2)
Push to select the desired memory channel.
 •Memorychannels canbe selected both in VFO and
memory modes.
%0 LCD FUNCTION SWITCHES [F-1]–[F-7]
Push to select the function indicated in the LCD dis-
play above these switches.
 •Functionsvarydependingontheoperatingcondition.

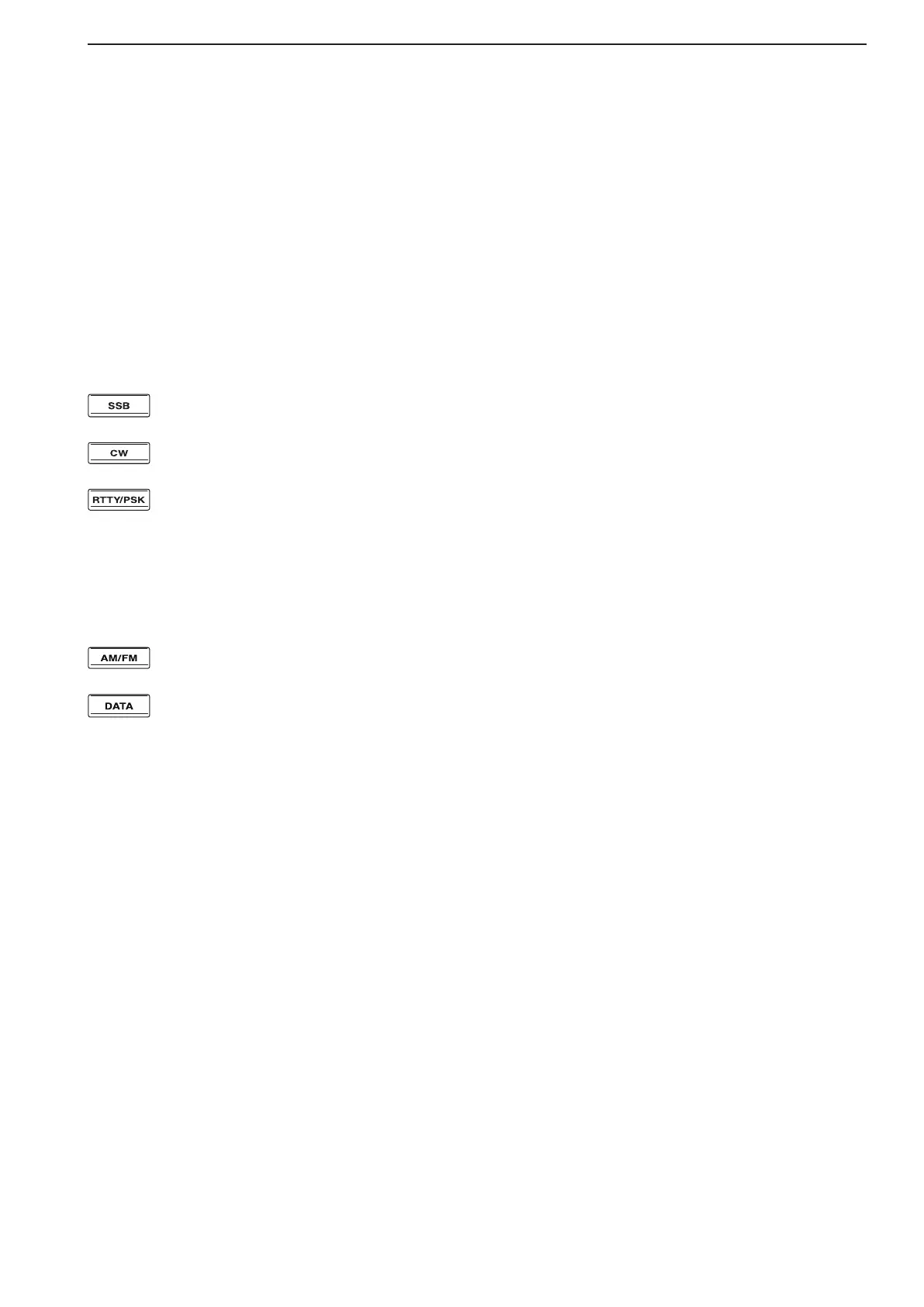

%1 MODE SWITCHES
Selects the desired mode. (p. 3-8)
 •Announcesselectedmodeviathespeechsynthesizer.
(p. 12-17)
➥ Selects USB or LSB modes alternately.
➥ Selects CW or CW-R (CW reverse) modes
alternately.
➥ Switches between RTTY and PSK
mode.
➥ Switches RTTY or RTTY-R (RTTY re-
verse)
mode when held down for 1 sec-
ond in RTTY mode.
➥ Switches PSK or PSK-R (PSK reverse)
mode when held down for 1 second in
PSK mode.
➥ Selects AM or FM modes alternately.
➥ Selects SSB, AM or FM data mode
(USB-D, LSB-D, AM-D, FM-D) when
pushed in SSB, AM or FM mode, re-
spectively.
➥ Switches D1, D2 or D3 when held down
for 1 second.
%2 MINI SPECTRUM SCOPE SWITCH [M.SCOPE]
(p. 5-4)
➥ Push to t
urn ON or OFF the mini spectrum scope
screen.
   •Theminispectrumscopescreencanbedisplayed
with another screen, such as memory or set mode
screen, simultaneously.
➥ Hold down for 1 second to t urn ON the spectrum
scope screen.
%3 VOICE MEMORY RECORD SWITCH [REC]
➥ Push to store the previous received signal for the
preset time period. (p. 7-7)
   •Thepresettimeperiodcanbesetinthevoiceset
mode. (p. 7-13)
➥ Hold down for 1 second to record a QSO (Com-
munication) audio onto a memory device. (p.
7-2)
   •Holddownthisswitchfor1secondagaintostopre-
cording.
   •Therecordedmemorydevicecanbechangedinthe
voice set mode. (p. 7-13)
%4 VOICE MEMORY PLAY BACK SWITCH [PLAY]
(p. 7-8)
➥ Push to playback the selected voice memory in
the RX memory screen for the preset time period.
    •WhentheRXmemoryscreenisnotdisplayed,the
previously recorded audio is played back for the
preset time period.
➥ Hold down for 1 second to playback all of the se-
lected voice memory in the RX memory screen.
    •WhentheRXmemoryscreenisnotdisplayed,allof
the previously recorded audio is played back.
%5 EXIT/SET SWITCH [EXIT/SET]
➥ Push to exit, or return to the previous screen in-
dication during spectrum scope, memory, scan
or set mode screen display.
➥ Displays set mode menu screen when held down
for 1 second.
%6 TRANSMIT FREQUENCY CHECK SWITCH [XFC]
(p. 6-6)
Monitors the transmit frequency
(including ∂TX fre-
quency offset)
when held down during split frequency
operation.
 •Whileholdingdownthisswitch,thetransmitfrequency
can be changed with the main dial, keypad, memo pad
or [Y]/[Z] switches.
 •WhenthesplitlockfunctionisturnedON,pushing[XFC]
cancels the dial lock function. (p. 6-7)
1
PANEL DESCRIPTION
