Auto Sentry® flex User Manual 143 Marketing with your Auto Sentry
5 Click the Add or Edit button.
The Denomination dialog box appears.

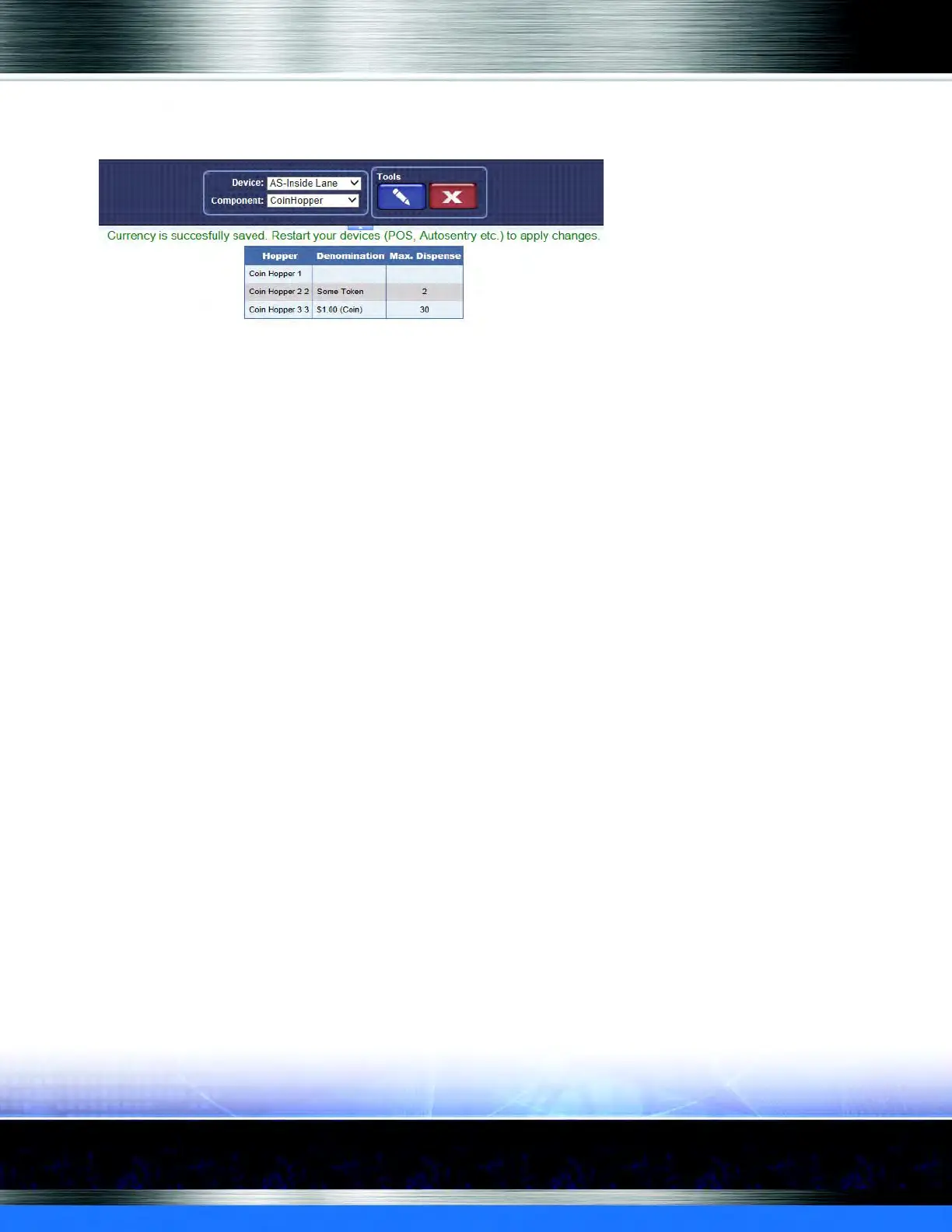

Figure 105. Denomination Dialog Box
6 Do the following:
▪ In the Denomination box, select Some Token
▪ In the Max. Dispense box, type a dispense limit per transaction.
7 Click the Save button.
The token is registered. Restart the device, the Auto Sentry® flex in this example, is now
configured to dispense tokens.
Next, you can enable a PLU to dispense a token coin:
1 On the Configuration menu, select Goods and Services, and then click the Sales Item.
The Sales Item tab appears.
2 Select the PLU you want to configure, and then click the Edit button.
