Auto Sentry® flex User Manual 59 Operating

then that Auto Sentry® flex will always display “Please Wait While We Verify Your

Membership.”

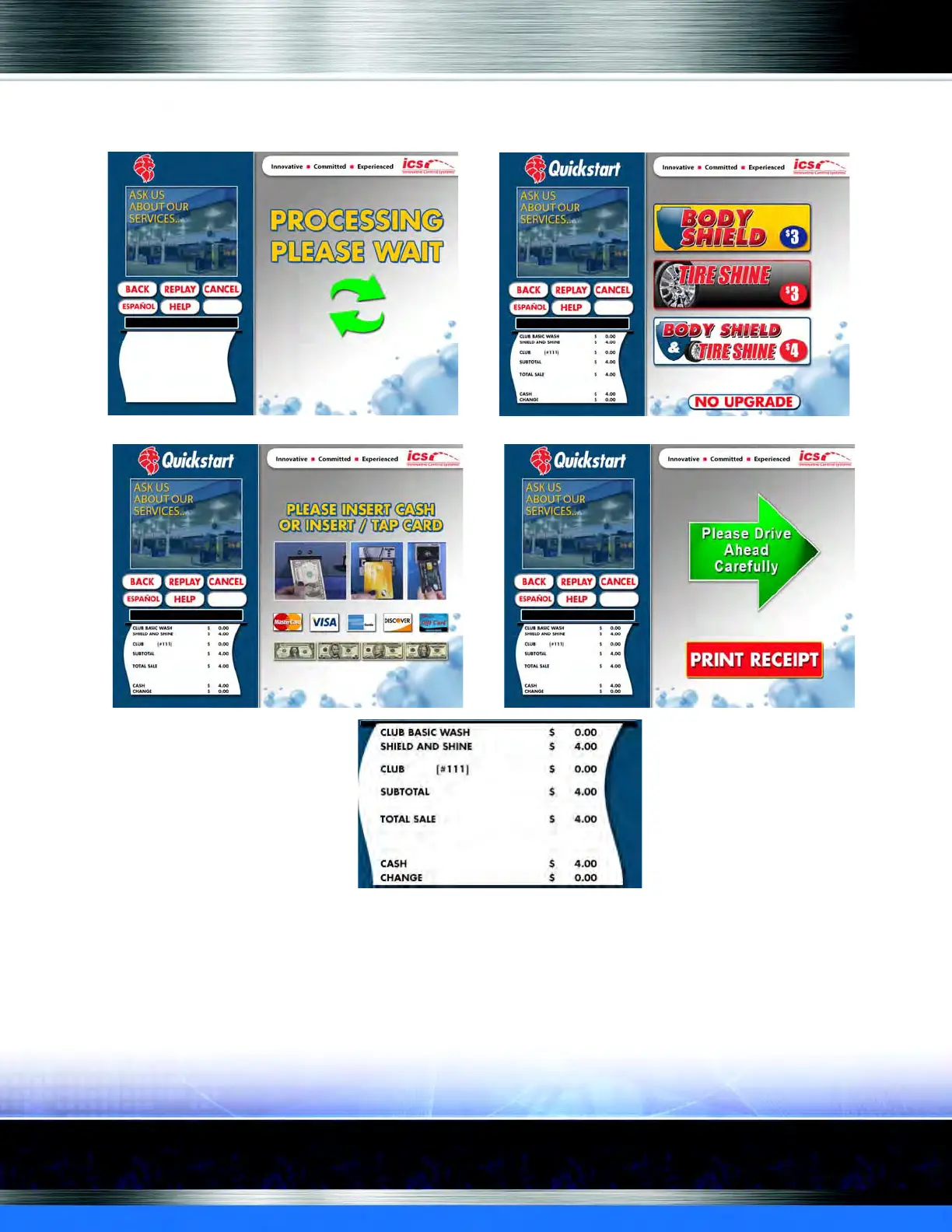

Figure 40. Wash Club Purchase with Club Tag

In Figure40, when the club customer arrives, the Auto Sentry® flex system checks for an RFID tag

and active membership status. The customer has a choice to select one (or more, if set up) extra

service from the list or select no upgrade. The on-screen receipt shows an approved club service
