Auto Sentry® flex - User Manual 183 Reports

Terminal Balance Report

The Terminal Balance Report will give the user the ability to see the ending terminal balance for a

specific day. The report can be viewed per day and the user can drill down from the Site level all

the way to the individual component level in a device to see the ending balance on that specific

day.

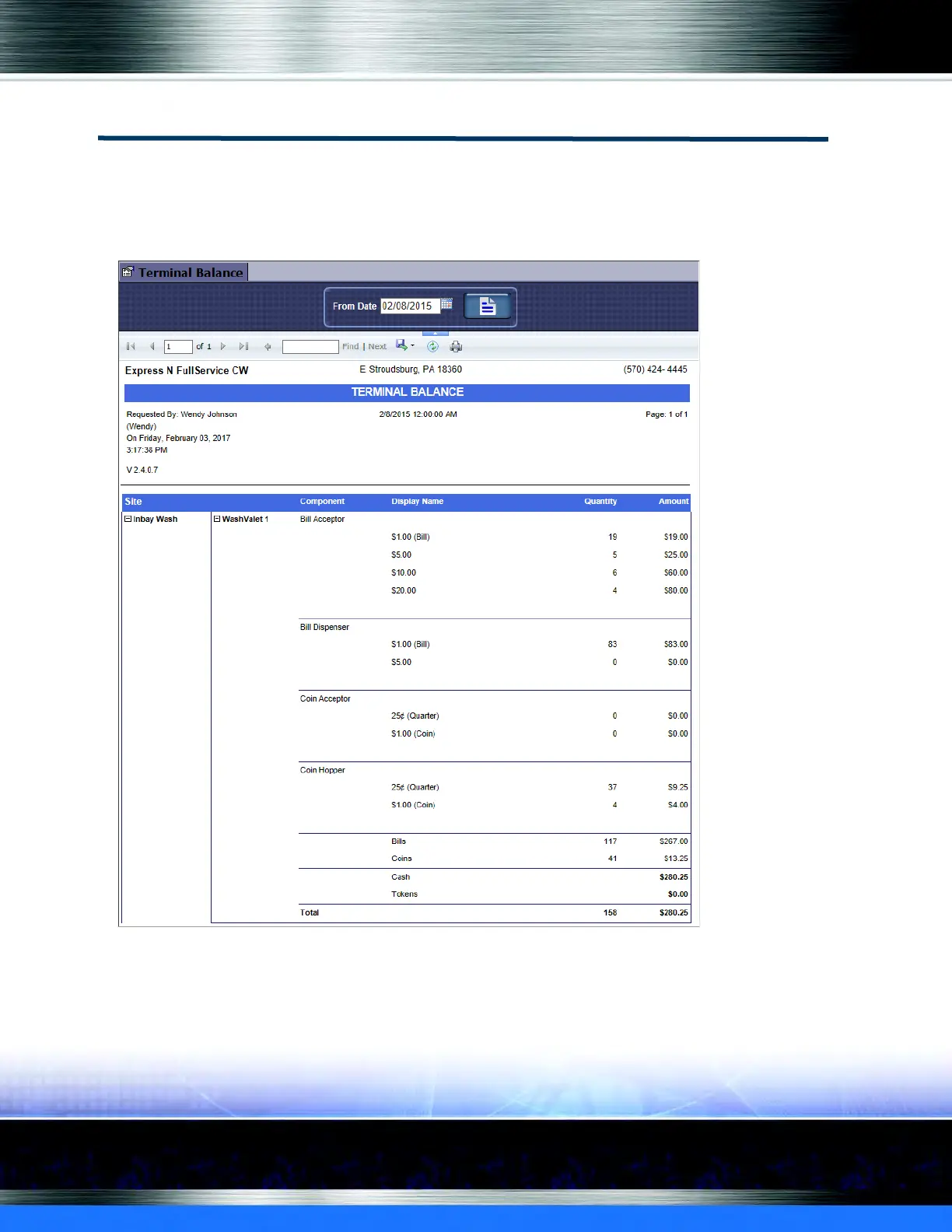

Figure 132. Terminal Balance Report

The Terminal Balance report shows the total bills, coins, and tokens in each Auto Sentry® flex

terminal. You can view the Terminal Balance report to decide whether you should add or remove

cash from the Auto Sentry® flex.
