Model 250
Printer Applicator
Operators/Technical Manual Appendix 2
Section A2 Page 2 of 3
air flow
To ensure that the label will feed properly on the Tamp Pad, set the label leading edge to
the tip of the peel tip ( label flag). When the label is dispensed it should feed in to the
chamfer on the peel edge. Follow the angle of the Tamp pad the air assist will blow the
label back up to the Tamp pad and assist in pushing the label out on the pad. With the
proper setup on the printer or applicator the label should feed completely, covering the ID
250 tamp pad Note Figure 2

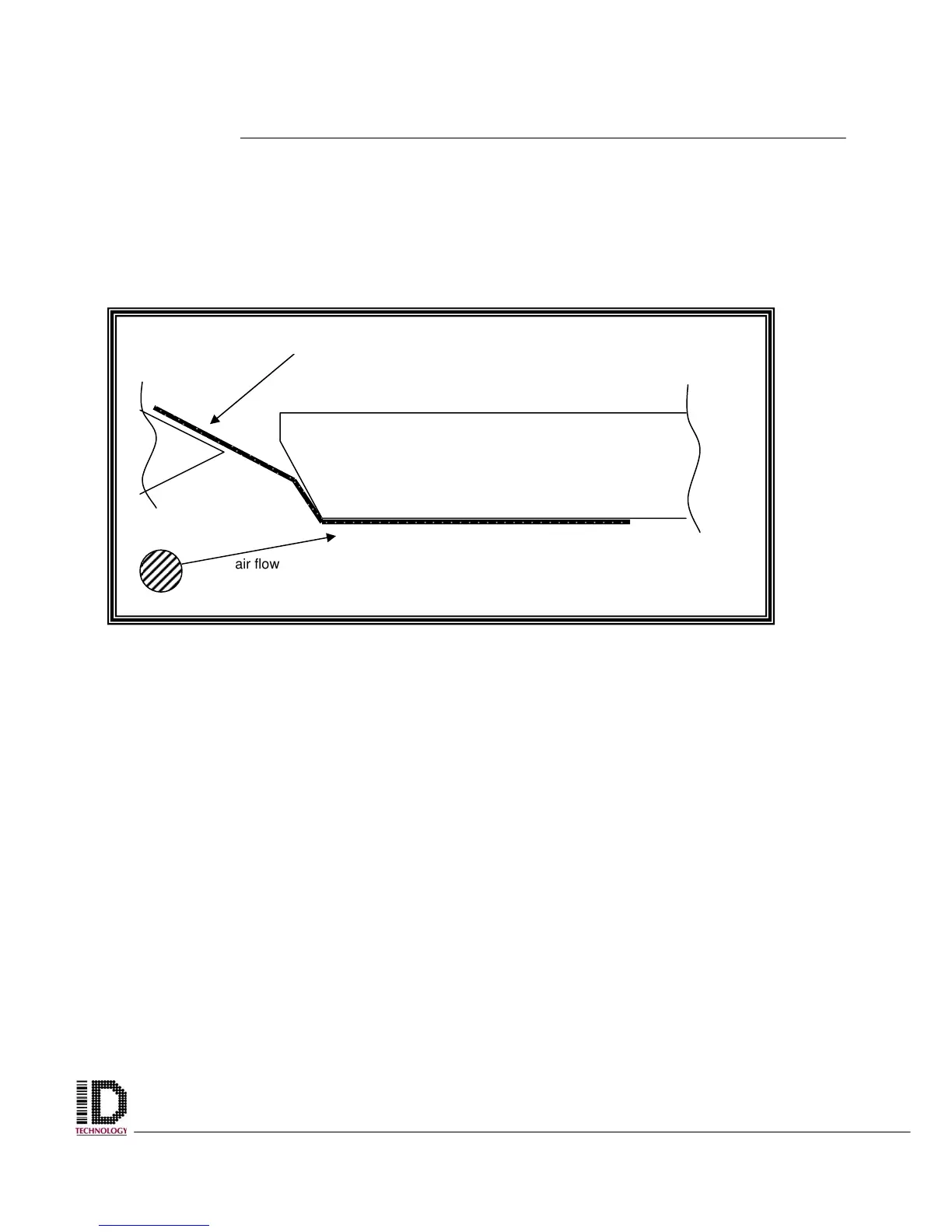

Figure 2
label
