Model 250
Printer Applicator
Operators/Technical Manual Appendix 2
Section A2 Page 3 of 3

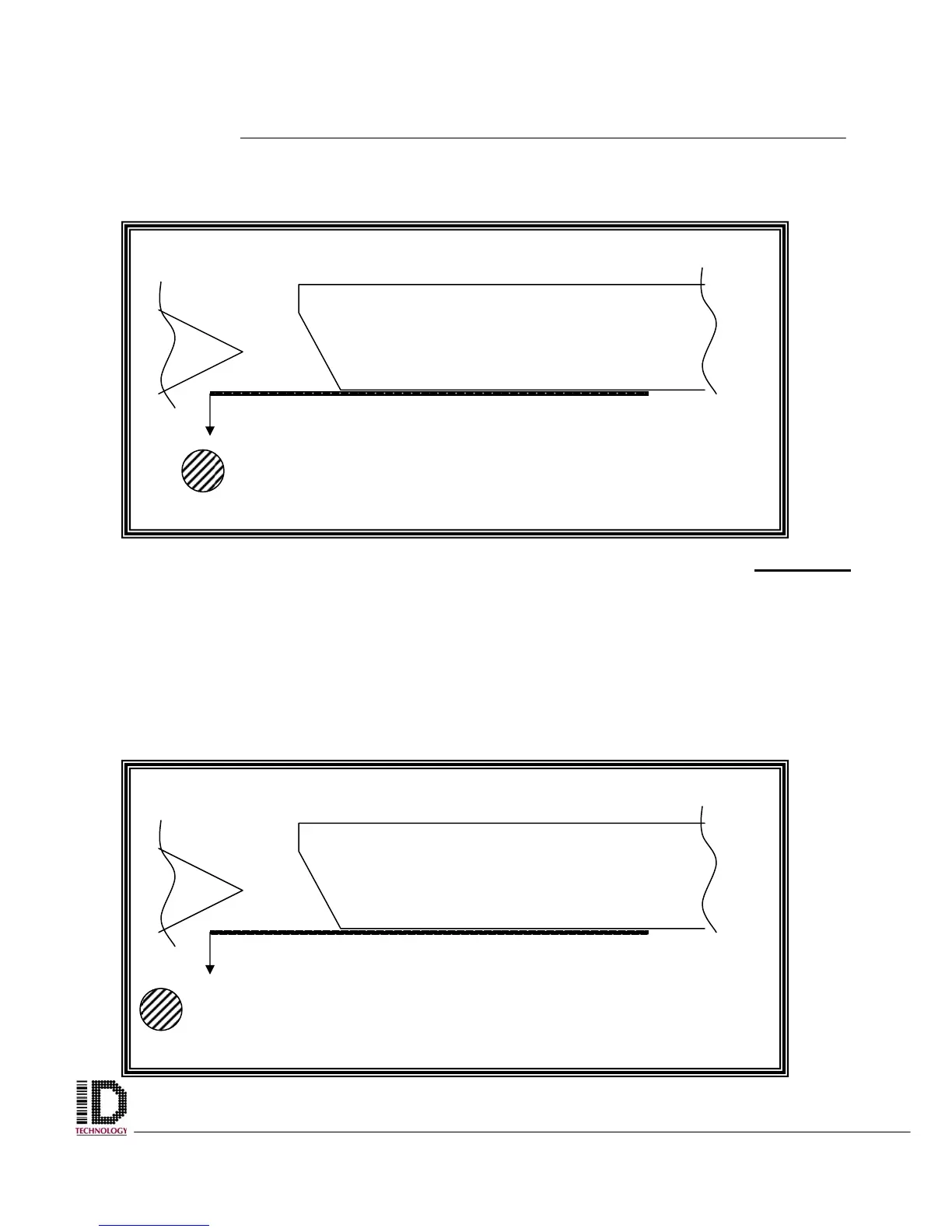

After the label is dispensed out on the Tamp pad verify that the label is sitting below the
peel edge. Also check to make sure the label is not going to catch the air assist tube
when the machine starts to cycle to place a label on a product. Note Figure 3
Figure 3
Note the label will catch on the air assist tube as the tamp pad cycles. The
air assist tube will need to be moved back away from the tamp pad to allow
the label to pass. If settings are wrong in the print engine or microprocessor
the label my not feed out all the way.
Note Figure 4 for the correct setup that will allow the label to be applied without any
interference.
Figure 4
