Model 250
Printer Applicator
Operators/Technical Manual Section 3B
Section 3B Page 5 of 9

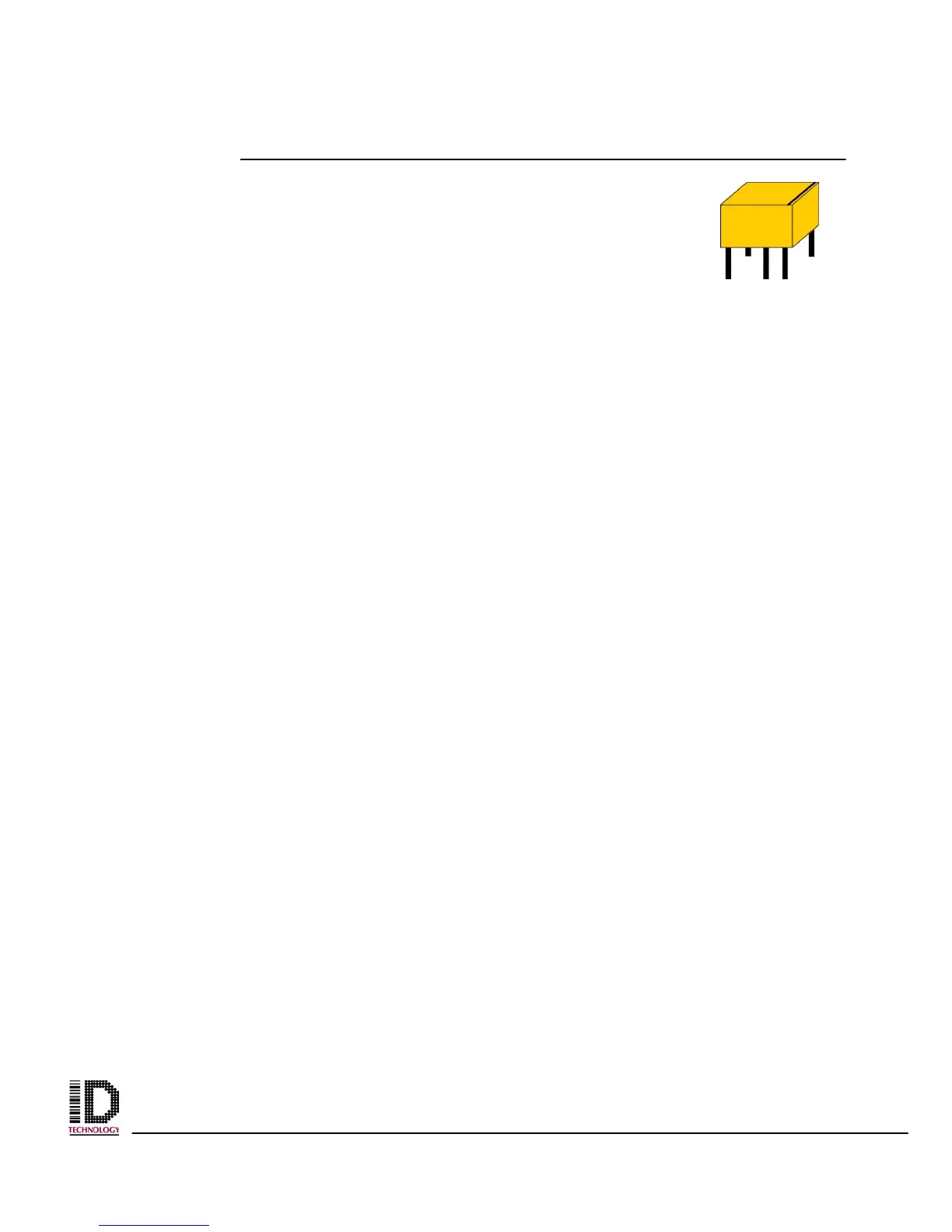

Specifications of the (3) mechanical relays:
Single side stable, S Type 1 Form C
Minimum operating power – approximately 100mW
Nominal operating power – approximately 200mW
Contact:
Arrangement - 1 Form C (Part No. - DS1E-S-DC5V)
Initial contact resistance, max. (by voltage drop 6 V DC 1A) - 50mΩ
Contact Material – Gold-clad silver
Rating (restive) – Max. switching power – 60 W, 125 VA
Max. switching voltage – 220 V DC, 250 V AC
Max. switching current – 2 A DC, AC
Max. carrying current – 3 A DC, AC
Expected Life (min. operations – Mechanical (at 600 cpm) 10
8
Electrical 2 A 30 VDC resistive – 5 X10
5
Coil (polarized) (at 20
o
C (68
o
F) ):
Nominal Voltage, 5V DC
Minimum Operating Power - Approx. 100mW
Nominal Operating Power - Approx. 200mW
Characteristics (at 20
o
C 68
o
F):
Max. Operating Speed – 20cpm at rated load 50 cps at low level load
Initial insuration resistance – Min. 100MΩ (at 500 VDC)
Initial break-down voltages (Detection current: 10mA)
Between open Contacts - 500Vrms
Between contacts sets - n/a
Between contacts and coil - 1,000Vrms
FCC surge voltage between contacts and coil – 1,500Vrms
Operate time
(at nominal voltage)(excluding contact bounce time) –
approx. 3ms
Release time
(without diode)(at nominal voltage
) – approx. 2 ms
Set Time
(at nominal voltage) (excluding contact bounce time) –
approx. 3ms
Reset Time
(at nominal voltage) (excluding contact bounce time) –
approx. 3ms
Temperature rise
(at nominal voltage) (Contact current 2A) –
Max. 65
o
C
Shock resistance: Functional – Min. 490 m/s
2
{50 G}
Destructive – Min. 294 m/s
2
{30 G}
Vibration resistance: Functional – 10 to 55Hz at double amplitude of 3.3mm
Destructive - 10 to 55Hz at double amplitude of 5mm
Unit weight - approx. 3.2g (.11 oz.)
Conditions for operation, transport and storage (not freezing and
condensing at low temperature): Ambient temperature –
-
40
o
C to
+
70
o
C
(
-
40
o
F to
+
158
o
F)
Humidity – 5 to 85% R.H.
